| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Current Rating | |
| Housing Material | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| SVHC Present | |
| Terminal | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge or Range |

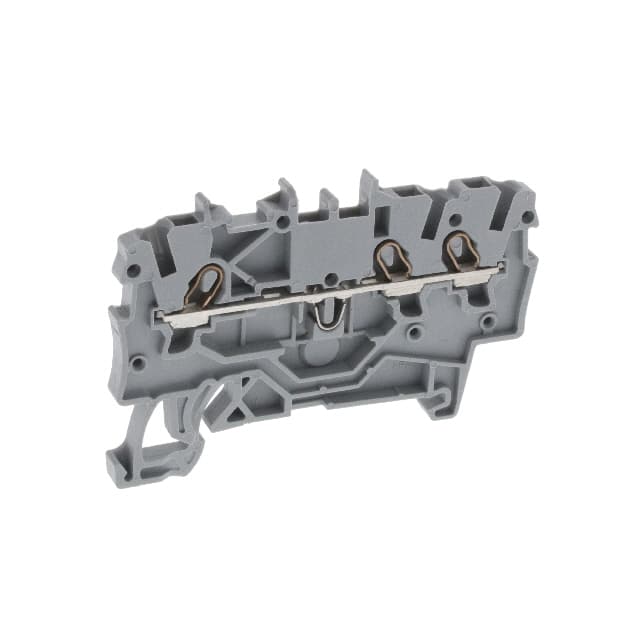

The Wago 2000-1301 is a 3-conductor feed through terminal block from the 2000 Series, featuring Push-in CAGE CLAMP® connection technology. This terminal block accepts solid and fine-stranded conductors with ferrules, allowing tool-free insertion directly into the clamping point. It has 3 clamping points for a single potential.
Key specifications include a rated voltage of 600 V (with IEC/EN 60947-7-1 rated voltage of 800 V), a rated current of 15 A (with IEC rated current of 13.5 A), and a terminal width of 3.5 mm. The wire gauge range is 0.5-1.5 mm² (0.14 to 1.5 mm² per datasheet), with a strip length of 9-11 mm. The housing is made of gray polyamide (PA66) and dimensions are 3.5 x 58.2 x 39.5 mm.
This feed through terminal block mounts on DIN rails 35 x 15 and 35 x 7.5. It is suitable for Ex e II applications and features an overvoltage category III with pollution degree 3.
It has 3 positions (3 conductors).
The existing database lists 15 A; the datasheet IEC/EN 60947-7-1 rating is 13.5 A.
Existing database lists 600 V; datasheet IEC/EN 60947-7-1 rating is 800 V.
The existing database lists 0.5-1.5 mm²; the datasheet specifies 0.14 to 1.5 mm².
It mounts on DIN rails 35 x 15 and 35 x 7.5.
The housing is gray.
It uses Push-in CAGE CLAMP® spring connection.
