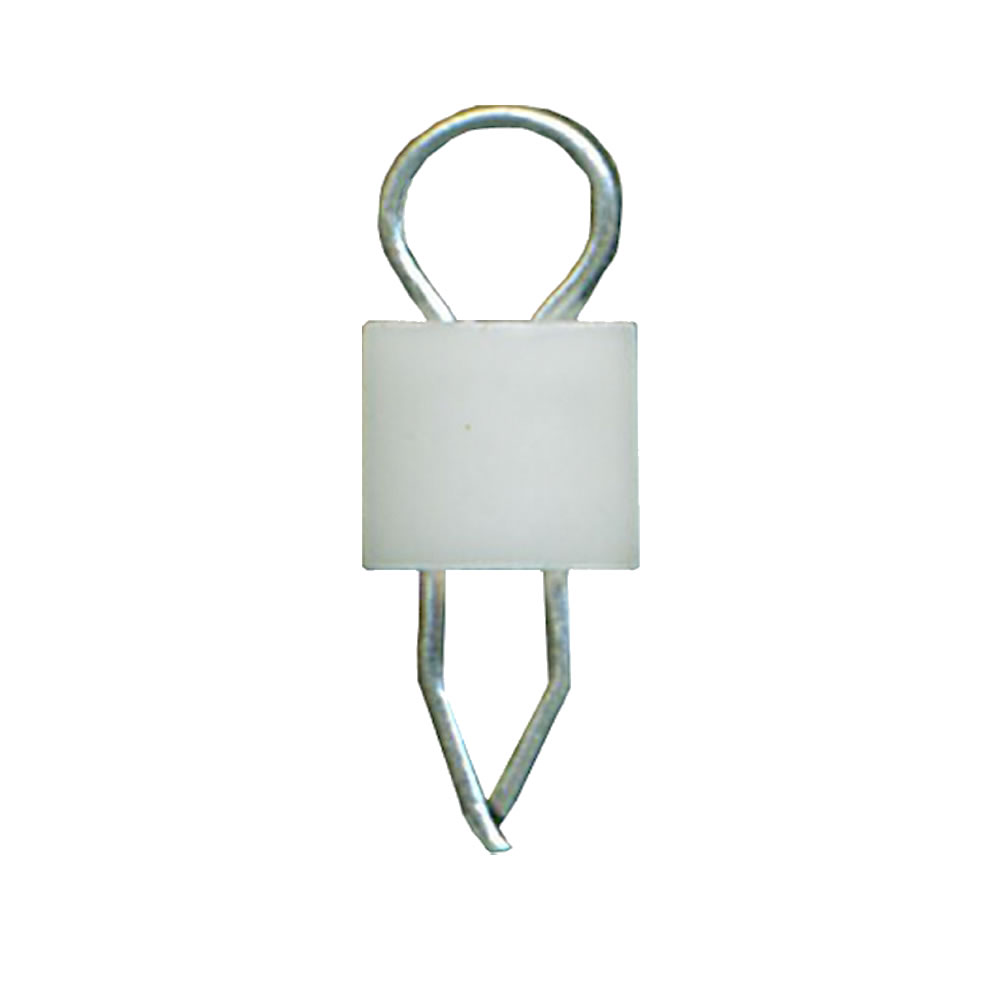

20-313139 The Vero Technologies 20-313139 is a white PCB test point with a loop terminal assembly designed for 1.02mm holes. It features a sintered glass insulator and a compliant pin design.
Mfr Part #:

20-313139

Available from 1 distributors
Mfr Name: not defined
not defined
The Vero Technologies 20-313139 is a white PCB test point with a loop terminal assembly designed for 1.02mm holes. It features a sintered glass insulator and a compliant pin design.
✓ Total Stock: 35 pcs
$ Price Range: $0.99

20-313139 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
35 pcs
On Request
35 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

20-313139 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Plating
View Similar Products (0)

20-313139 Description

Short technical summary and product information.

The Vero Technologies 20-313139 is a white PCB test point featuring a loop terminal assembly suitable for 1.02mm diameter holes. This component is designed for attaching test scope probes and leads, with a compliant pin that prevents damage to the PCB hole plating during insertion. The terminal remains securely in place, even when the board is inverted for soldering.



The test point utilizes a bead made of Boro Silicate Sintered Glass, which has a recommended maximum working temperature of 475C, exceeding standard temperature profile requirements. The wire loop is constructed from Phosphor Bronze (BS2873) and is electroplated with bright tin to a thickness of 3.0-5.0 microns. The assembly is designed for PCB thicknesses less than 1.6mm.



This part is available in 8 standard colors. It is supplied in packs of 100 units.

20-313139 Quick Information

Product Type: Test Point Pin
Canonical Name: PCB Test Point - Loop Terminal Assembly
Subcategory: Loop Terminal Assembly

20-313139 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

20-313139 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

20-313139 Features

  • Loop terminal assembly for 1.02mm holes.
  • Sintered glass insulator rated for 475C.
  • Phosphor Bronze wire loop with tin plating.
  • Compliant pin design for secure insertion.
  • Suitable for PCBs <1.6mm thick.

20-313139 Applications

  • Attaching oscilloscope probes to PCBs
  • Providing reliable test points on boards
  • Used for temporary or permanent probe connections
  • Ideal for prototyping and testing circuits
  • Color-coded identification for multiple test points

20-313139 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the hole size for the Vero Technologies 20-313139 test point?

The hole size is 1.02mm.

What is the maximum recommended working temperature for the glass bead?

The recommended maximum working temperature for the sintered glass bead is 475C.

What material is the wire loop made of?

The wire loop is made of Phosphor Bronze (BS2873).

What is the plating on the wire loop?

The wire loop is electroplated with bright tin to a thickness of 3.0-5.0 microns.

What is the standard package quantity for this part?

The standard package quantity is 100 units.
