Mfr Part #:

20-313137

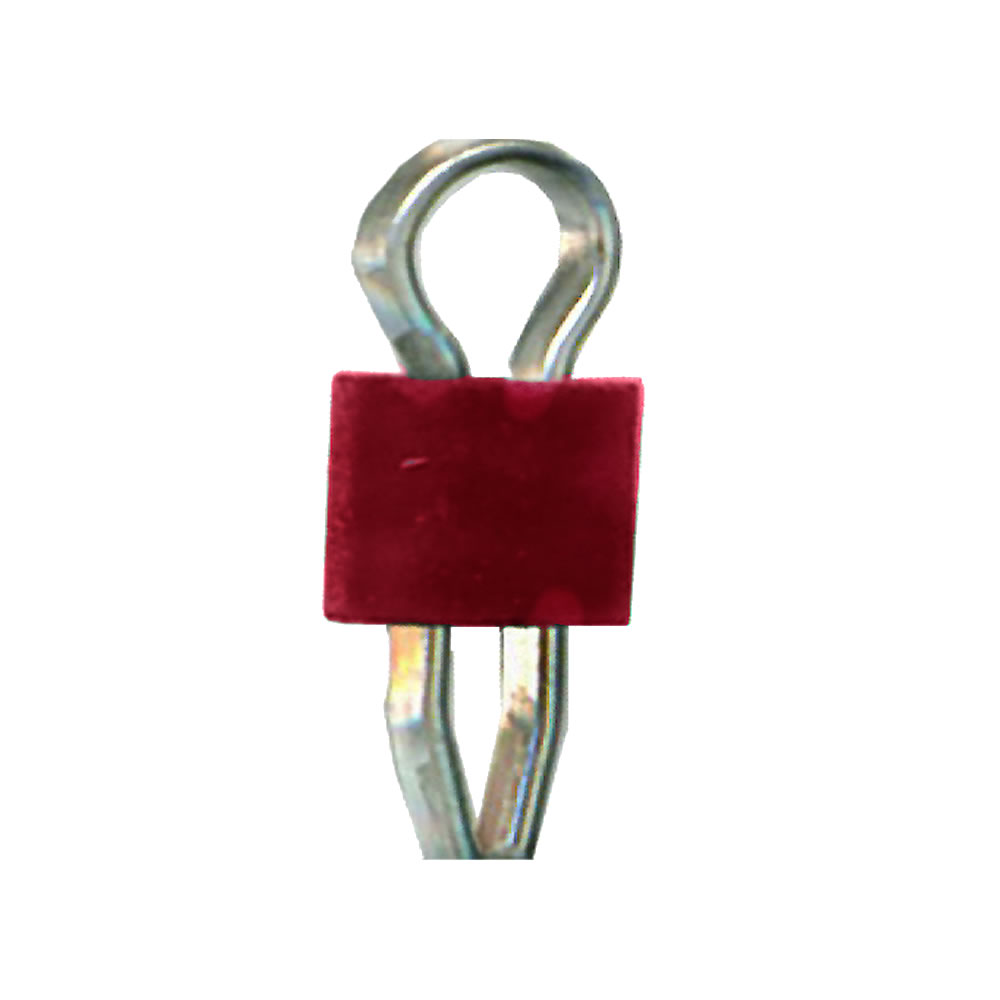

The Vero Technologies 20-313137 is a PCB Test Point Terminal Assembly designed for 1.02mm holes. It features a sintered glass insulator and phosphor bronze wire loop.

✓ Total Stock: 72 pcs

$ Price Range: $0.99

20-313137 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	72 pcs On Request	72 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

20-313137 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	not defined
Plating	Electroplated Bright Tin
SVHC Present	Present

View Similar Products (0)

20-313137 Description

Short technical summary and product information.

The Vero Technologies 20-313137 is a PCB Test Point Terminal Assembly designed for attachment of test scopes and probes. It is suitable for 1.02mm nominal holes and features a compliant pin design that prevents damage to hole plating during insertion. The terminal remains securely in place, even when the board is inverted for soldering.

The assembly utilizes a Boro Silicate Sintered Glass bead with a recommended maximum working temperature of 475C, exceeding standard temperature profile requirements. The wire loop is constructed from Phosphor Bronze (BS2873) and is electroplated with Bright Tin to a thickness of 3.0-5.0 microns. The maximum PCB thickness supported is 1.6mm.

This test point terminal is available in red and is supplied in packs of 100. Its robust construction and material specifications make it suitable for various testing applications in electronics manufacturing and development.

20-313137 Quick Information

Product Type: PCB Test Point Terminal Assembly

Canonical Name: Vero Technologies 20-313137 PCB Test Point Terminal Assembly

Subcategory: Test Point Terminal Assembly

20-313137 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

20-313137 Estimated Pricing

Qty	Low	High
1+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

20-313137 Features

Designed for 1.02mm nominal holes.
Compliant pin prevents hole plating damage.
Sintered glass insulator rated to 475C.
Phosphor bronze wire loop with tin plating.
Suitable for PCB thickness up to 1.6mm.

20-313137 Applications

Attaching leads for test scopes.
Connecting test probes securely.
Use in electronics testing applications.
Suitable for inverted board soldering.

20-313137 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the hole size?

1.02 mm.

What is the maximum PCB thickness?

1.6 mm.

What is the maximum working temperature?

475°C.

What is the plating material?

Electroplated bright tin with a thickness of 3.0 to 5.0 microns.

What is the wire loop material?

Phosphor bronze (BS2873).

What is the bead material?

Boro silicate sintered glass.

What is the standard package quantity?

100 pieces.
