| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

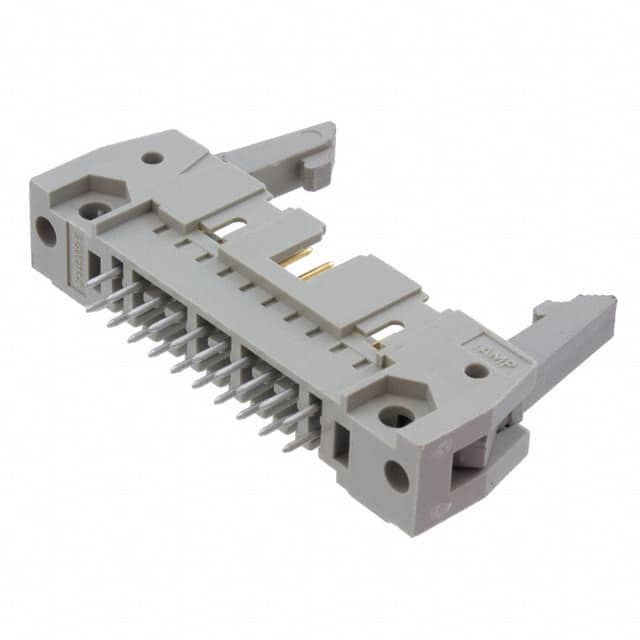

The TE Connectivity 2-828590-0 is a 20-position rectangular header designed for board-to-cable/wire applications. It features a 2.54mm pitch with two rows spaced at 2.54mm, and is fully loaded with male pin contacts made of brass with a tin finish. The connector is shrouded with four walls for robust protection and includes a keying slot and mounting flange for secure alignment. Fastening is achieved via latch lock/eject hooks.
The header uses a through-hole mounting style with solder termination and is housed in a gray, glass-filled polyester insulator. The overall contact length is 16.56mm with a mating pin length of 3.00mm. This connector is suitable for applications requiring a reliable, polarized connection with secure latching.
It has 20 positions, all loaded.
The pitch is 2.54mm (0.100 inches).
It uses through-hole mounting with solder termination.
Yes, it is a shrouded 4-wall header with a keying slot and mounting flange.
The contacts are made of brass with a tin finish (0.80µm thickness).
