| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
63 pcs
|
63 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

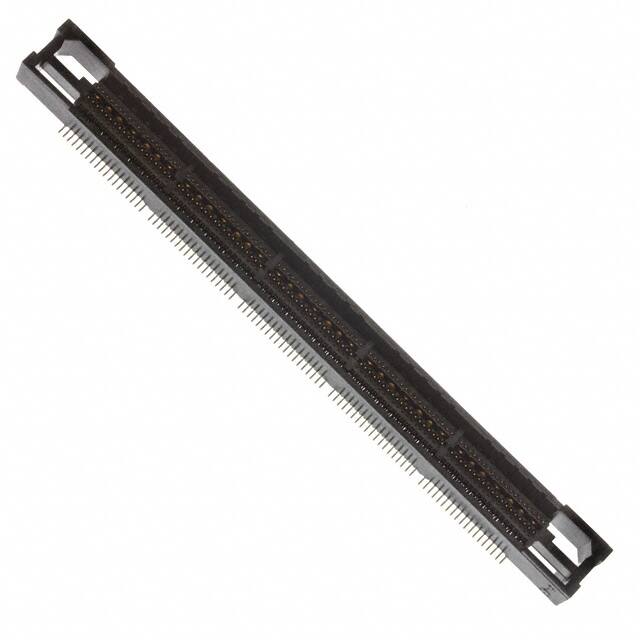

The TE Connectivity 2-767004-6 is a 190-position receptacle connector with center strip contacts, designed for board-to-board mezzanine stacking applications. It features a 0.64mm (0.025 inch) pitch and 2 rows of contacts, making it suitable for high-density interconnects.
The connector is surface mountable and includes a board guide and ground bus plane for enhanced mechanical alignment and signal integrity. The contacts have a gold finish with 0.76µm (30 microinch) plating. Multiple mated stacking heights are supported: 6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, and 22.86mm.
This connector is intended for use in applications requiring reliable high-density connections between parallel PCBs. The ground bus plane helps reduce electromagnetic interference.
It is a receptacle with center strip contacts having 190 positions.
The pitch is 0.64mm (0.025 inches).
It is a surface mount connector.
The contacts have a gold finish with a thickness of 30.0 microinches (0.76 micrometers).
The height above board is 6.00mm (0.236 inches).
Supported mated stacking heights are 6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, and 22.86mm.
It includes a board guide and a ground bus (plane).
