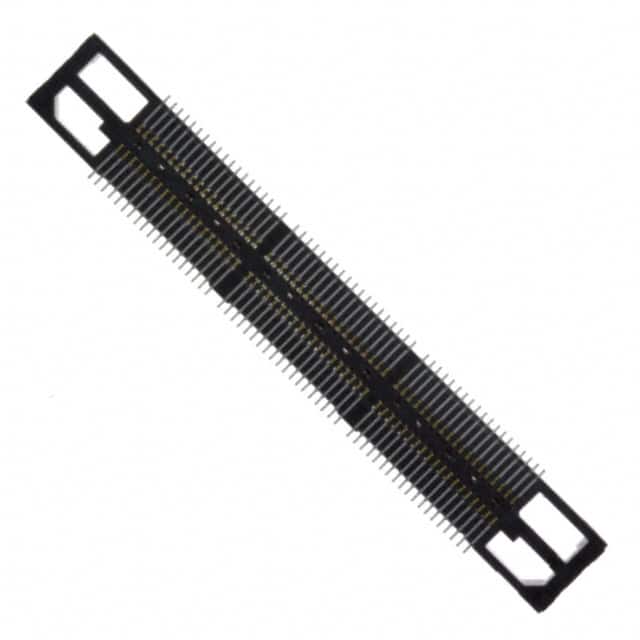

The TE Connectivity 2-767004-4 is a MICTOR series board-to-board receptacle connector. It features 114 positions with a 0.64mm (0.025in) pitch in a 2-row configuration. The connector is designed for surface mount mounting and vertical orientation, making it suitable for parallel board-to-board stacking.
This receptacle supports differential signaling with a data rate up to 10 Gb/s and a characteristic impedance of 114 Ω. It is rated for a maximum current of 11.5 A per contact and a maximum operating voltage of 30 VAC. The contact mating area is plated with gold and gold flash over palladium nickel, while the termination area is tin-lead. The housing is made of LCP (Liquid Crystal Polymer) and is black in color.
The connector accommodates various mated stacking heights including 6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, and 22.86mm. It includes a board guide and ground bus plane for alignment and grounding. The operating temperature range is -55°C to 125°C.
| Qty | Low | High |
|---|---|---|
| 10+ | $49.29 | $49.29 |
| 20+ | $48.37 | $48.37 |
| 30+ | $46.50 | $46.50 |
| 500+ | $39.49 | $39.49 |
| 1,000+ | $35.00 | $35.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
114 positions.
0.64mm (0.025in).
11.5 A maximum per contact.
30 VAC maximum.
Surface mount.
-55 to 125 °C.
10 Gb/s maximum.
