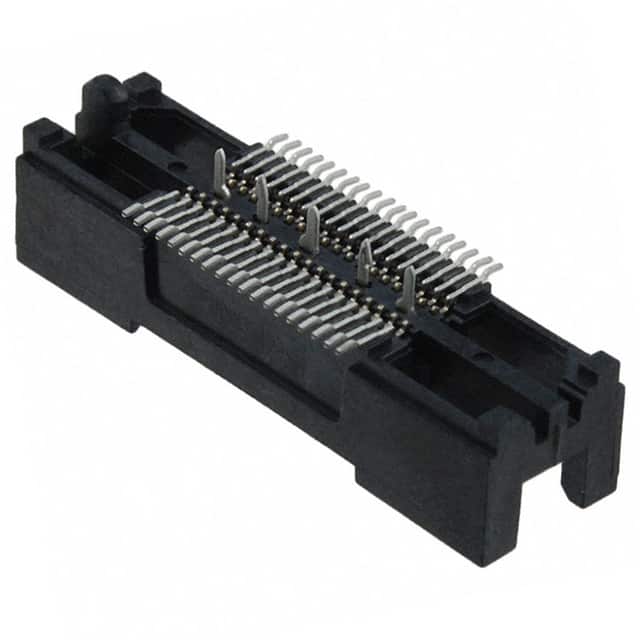

2-767004-2 38-position, 2-row, 0.64mm pitch surface mount receptacle from TE Connectivity. Features gold contacts, board guide, and ground bus plane.
Mfr Part #:

2-767004-2

Available from 7 distributors
Mfr Name: TE Connectivity
TE Connectivity
38-position, 2-row, 0.64mm pitch surface mount receptacle from TE Connectivity. Features gold contacts, board guide, and ground bus plane.
✓ Total Stock: 5,717 pcs

2-767004-2 Available from 7 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2-767004-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Lead Spacing
Lead Style
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
View Similar Products (0)

2-767004-2 Description

Short technical summary and product information.

The TE Connectivity 2-767004-2 is a 38-position, 2-row receptacle with center strip contacts, designed for board-to-board mezzanine applications. It features a 0.64mm pitch and surface mount termination, making it suitable for high-density interconnects. The connector includes a board guide for alignment and a ground bus plane for improved signal integrity. Contacts are gold plated with 30µin thickness for reliable connections. The mated stacking heights range from 6.6mm to 22.86mm, offering flexibility in board spacing. This connector is RoHS3 compliant and has an MSL of 1 (unlimited). It is commonly used in applications requiring compact, high-speed connections between parallel PCBs.

2-767004-2 Quick Information

Product Type: Board-to-Board Connector
Canonical Name: TE Connectivity 2-767004-2 38 Position 0.64mm Pitch Surface Mount Receptacle, Gold Contacts
Subcategory: Mezzanine Connector

2-767004-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: Non-Compliant

2-767004-2 Features

  • 38 positions with 0.64mm pitch.
  • Surface mount termination for compact designs.
  • Gold plated contacts for reliability.
  • Includes board guide and ground bus.
  • Supports multiple stacking heights.

2-767004-2 Applications

  • Board-to-board mezzanine connections.
  • High-density PCB interconnects.
  • Applications requiring ground plane integration.
  • Compact electronic devices and modules.

2-767004-2 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the 2-767004-2 have?

38 positions in 2 rows.

What is the pitch of this connector?

0.64mm (0.025").

What is the mounting type?

Surface mount.

What contact finish is used?

Gold with 30µin thickness.

What are the mated stacking heights?

6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, and 22.86mm.

Does this connector have any special features?

Yes, it includes a board guide and a ground bus plane.
