| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,700 pcs
|
1700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Board | |
| Cable Pitch | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Pitch | |
| Features | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Termination Style | |
| Wire Gauge |

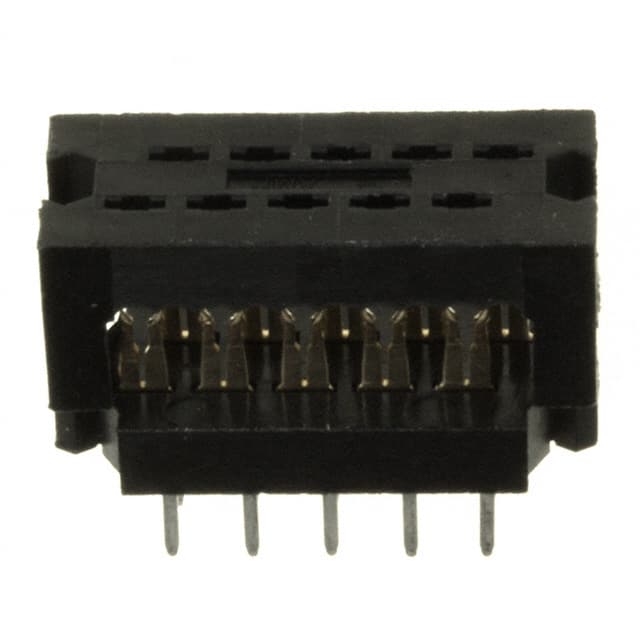

The TE Connectivity 2-746610-1 is a 10-position DIP header IDC connector designed for direct wire-to-board termination. It features a 2-row configuration with a 2.54mm (0.100") row spacing and contact pitch, and a 1.27mm (0.050") cable pitch. The connector uses IDC (Insulation Displacement Contact) termination for ribbon cable, supporting 26-28 AWG stranded and 26-30 AWG solid wire.
This through-hole mounted connector has tin-plated contacts with a thickness of 2.54µm (100µin). It is black in color and includes a feed-through feature. The connector is RoHS3 compliant and has an MSL rating of 1 (unlimited).
Typical applications include board-to-wire connections in electronic assemblies where a compact, reliable interface is needed. The DIP header format allows for easy integration into standard 0.100" grid PCBs.
The connector has 10 positions arranged in 2 rows.
The contact pitch is 2.54mm (0.100") and the cable pitch is 1.27mm (0.050").
The connector uses through-hole mounting.
It accepts 26-28 AWG stranded wire and 26-30 AWG solid wire.
The contacts have a tin finish with a thickness of 2.54µm (100µin).
