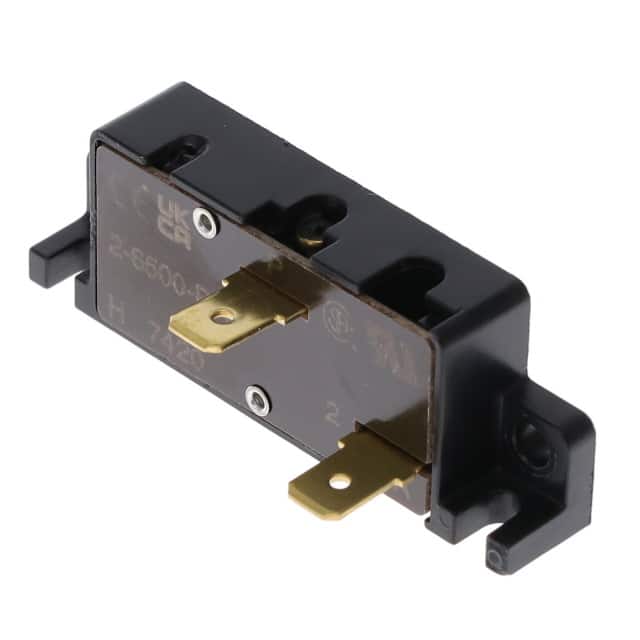

This E-T-A 2-6500-P10-5.5A is a single-pole thermal circuit breaker rated for 5.5A continuous current. It is designed for overcurrent protection in circuits operating at 250 VAC (50/60 Hz) or 28 VDC. The breaker features an automatic reset actuator type, making it suitable for applications where manual reset is not required. The panel mount design uses Quick Connect (QC) .250 blade terminals sized 6.3x0.8 mm. The ambient operating temperature range is -10°C to +60°C. The unit is protected to IP30 and can withstand vibration of 5 g (57-500 Hz) and shock of 15 g (11 ms). It weighs approximately 20 g and is RoHS3 compliant (unverified). Typical applications include power supplies, industrial control panels, and automotive or marine systems where automatic reset is acceptable.
The voltage rating is 250 VAC (50/60 Hz) and 28 VDC.
The ambient operating temperature range is -10°C to +60°C.
This circuit breaker is designed for panel mount installation.
The nominal current rating is 5.5 A, with a range of 0.1 to 10 A available.
It uses an automatic reset actuator type.
It features blade terminals sized 6.3 x 0.8 mm (QC .250).
The housing provides IP30 protection per IEC 60529.
