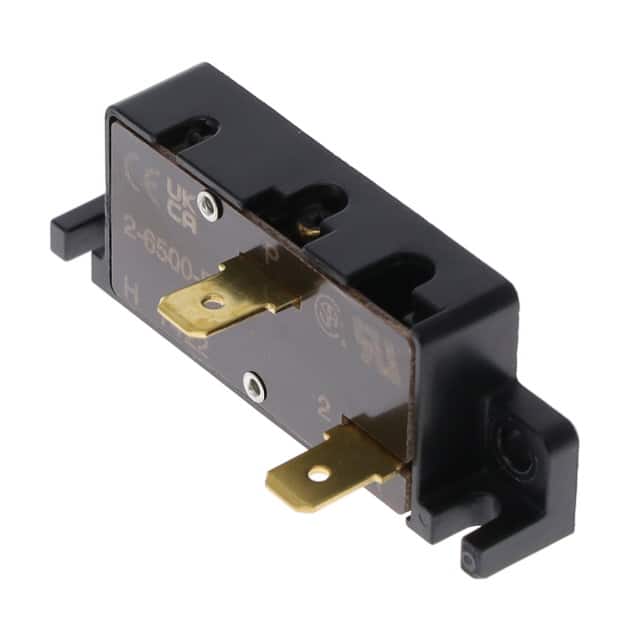

The E-T-A 2-6500-P10-4A is a bimetal-operated, single-pole circuit breaker with automatic reset actuation. It is designed for motor protection and features a small physical size with a reliable snap-action mechanism.
This thermal circuit breaker has a current rating of 4A and a voltage rating of 250V AC or 28V DC. It is designed for panel mounting and features blade terminals for connection. The breaker type is thermal, with a single pole configuration and an automatic reset actuator.
Key technical specifications include an operating temperature range of -10°C to 60°C, an interrupting capacity of 8 x IN, and a reset time between 30 and 70 seconds at 23°C. The housing has an IP30 degree of protection.
Typical applications for this circuit breaker include motors, transformers, and extra low voltage wiring. It is approved by CSA C22.2 No 235 and UL1077.
The current rating is 4A.
The voltage rating is 250V AC and 28V DC.
It is a thermal circuit breaker.
It has 1 pole.
It features automatic reset.
The operating temperature range is -10°C to 60°C.
The housing has an IP30 degree of protection.
