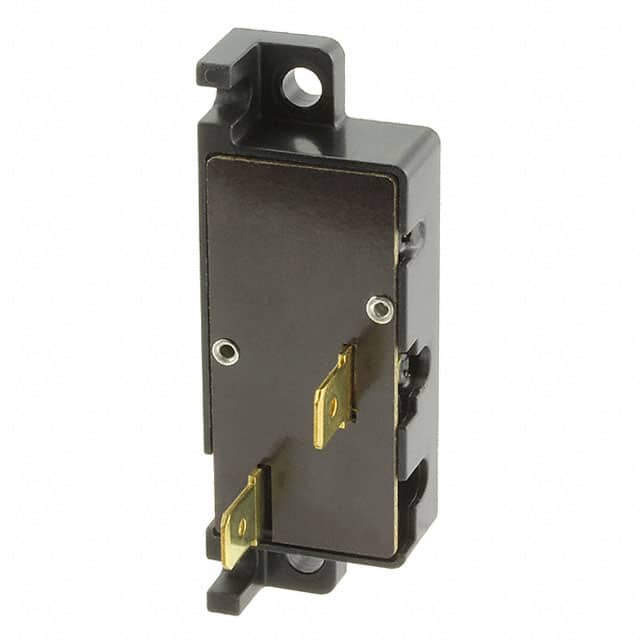

The E-T-A 2-6500-P10-10A is a bimetal-operated, single-pole thermal circuit breaker designed for motor protection. It offers automatic reset actuation and a reliable snap-action mechanism, making it suitable for applications involving motors, transformers, and extra low voltage wiring.
This circuit breaker has a voltage rating of 250V AC (50/60 Hz) and 28V DC, with current ratings ranging from 0.1A to 10A. It is designed for panel mounting and features P10 blade terminals for connection. The device has a typical life of 100,000 operations at 2x IN and an interrupting capacity of 8x IN.
Environmental specifications include an operating temperature range of -10°C to +60°C (14°F to 140°F) and a housing degree of protection of IP30. The breaker has undergone vibration, shock, corrosion, and humidity testing according to IEC standards.
Approvals include CSA C22.2 No 235 and UL1077, ensuring compliance for various applications. Caution should be exercised to ensure that automatic motor re-start does not represent a safety hazard in the intended application.
250VAC (50/60 Hz) and 28VDC.
-10°C to +60°C (-10°F to +140°F).
100,000 operations at 2×IN.
8 times the rated current (8×IN).
Panel mount with P10 blade terminals (6.3×0.8 mm).
