2-644488-5
TE Connectivity
TE Connectivity 2-644488-5 is a 5-position, single-row, shrouded header with male pins, 2.54mm pitch, right-angle through-hole mounting, and friction lock fastening.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

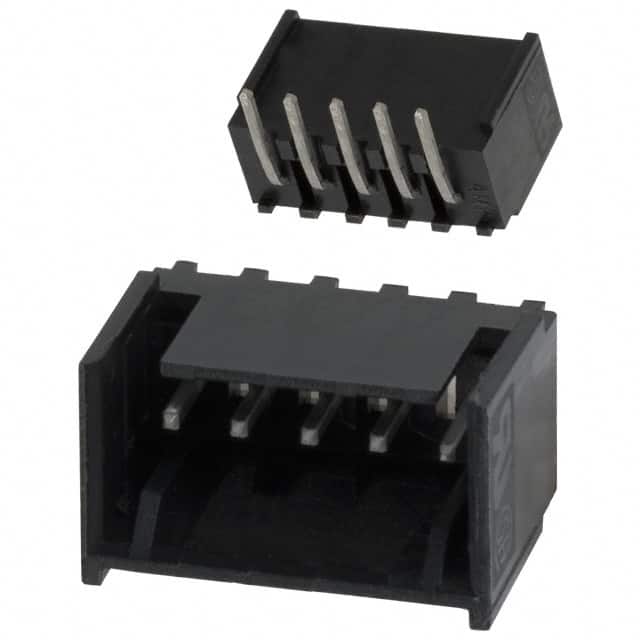

The TE Connectivity 2-644803-5 is a 5-position, single-row header connector designed for board-to-cable/wire applications. It features a 2.54mm (0.100") pitch and through hole right angle mounting with solder termination. The connector is fully shrouded with a 4-wall design and includes a friction lock for secure mating.
The header uses square male pin contacts made of copper alloy with a tin finish. The black polyester insulation has a height of 8.71mm and a contact length of 5.08mm. It is rated for 250VAC and has an operating temperature range of -55°C to 105°C. The insulation material is rated UL94 V-0 for flammability.
This connector is suitable for various wire-to-board interconnection needs where a compact, reliable locking header is required. The right angle orientation allows for low-profile connections parallel to the PCB.
5 positions.
2.54mm (0.100").
250VAC.
Varies by wire gauge.
Through hole, right angle.
-55°C to 105°C.
Yes, shrouded with 4-wall design and friction lock.
