| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

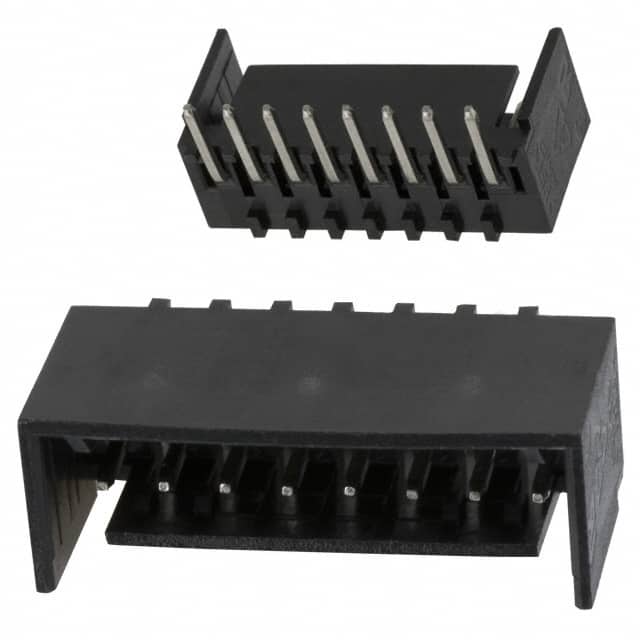

The TE Connectivity 2-644488-8 is a header component designed for board-to-cable/wire applications. It features 8 positions arranged in a single row with a 2.54mm (0.100") pitch.
The header has a right angle mounting type and is designed for through-hole termination. The contacts are made of copper alloy with a tin finish and are male pin type, square in shape. The insulation material is black polyester with a height of 8.71mm (0.343").
This component is shrouded with 4 walls for protection and has a friction lock fastening type. It is rated for 250VAC and has an operating temperature range of -55°C to 105°C. The material has a flammability rating of UL94 V-0.
The header has 8 positions.
The pitch is 2.54mm (0.100").
The voltage rating is 250VAC.
It uses through hole, right angle mounting.
The operating temperature is -55°C to 105°C.
The material flammability rating is UL94 V-0.
