| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

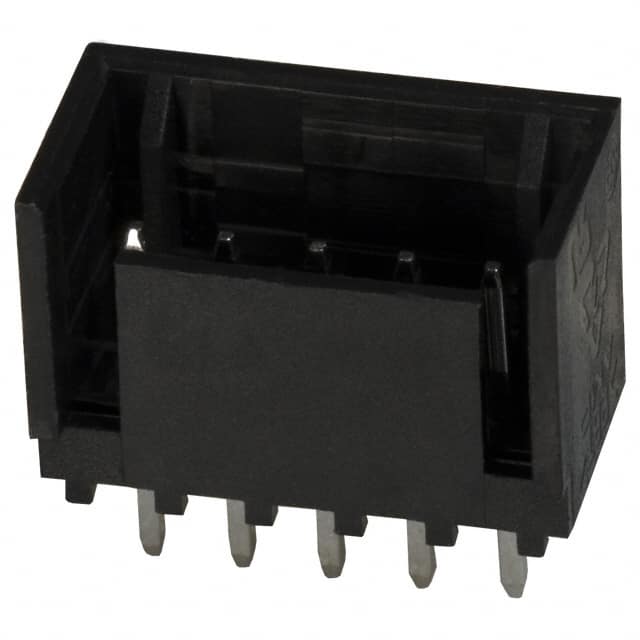

The TE Connectivity 2-644486-5 is a 5-position, single-row header with male pin contacts, part of the shrouded header family with a 4-wall design. The connector features a 2.54mm (0.100") pitch and includes a friction lock for secure mating with compatible cable connectors.
Key specifications: 5 positions, 1 row, through-hole mounting with solder termination. Contacts are made of copper alloy with a tin finish, and the overall contact length is 11.18mm (0.440") with a mating contact length of 5.08mm (0.200"). The insulation is black polyester, rated UL94 V-0 for flammability, with an insulation height of 10.41mm (0.410").
Electrical ratings: voltage rating of 250VAC; current rating varies by wire gauge. Operating temperature range is -55°C to 105°C. The connector includes a board guide feature for alignment during assembly. This connector is suitable for board-to-cable/wire interconnect applications requiring a reliable, polarized connection.
The pitch is 2.54mm (0.100").
It has 5 positions, all loaded, in a single row.
The voltage rating is 250VAC.
The current rating varies by wire gauge; no fixed value is specified.
It is through-hole mounting with solder termination.
The operating temperature range is -55°C to 105°C.
The insulation is black polyester with a UL94 V-0 flammability rating.
