| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
608 pcs
|
608 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

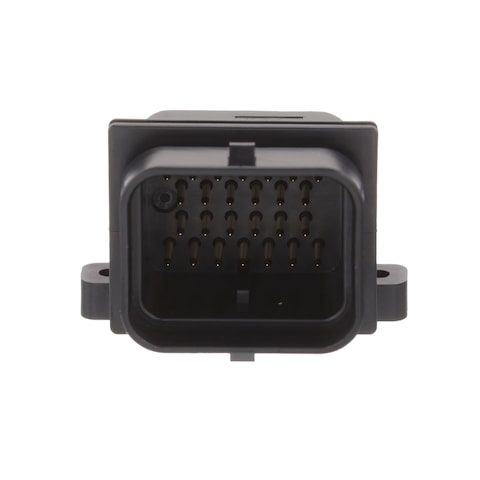

The TE Connectivity 2-6437285-8 is a 26 position, 4 row, right angle male pin header designed for board to cable/wire applications. It features a shrouded 4-wall design with a locking ramp for secure mating, and is sealed for protection in harsh environments. The header uses through hole mounting with solder termination, and has a 3.00mm pitch for compact layouts.
The connector is rated for 250V and operates over a temperature range of -40°C to 125°C. Contacts are made of brass with a tin finish, and the insulation is black polyester with a height of 27.40mm. The contact length is 4.00mm. Current rating varies by wire gauge.
This header is suitable for applications requiring reliable connections in sealed conditions. The right angle orientation allows for low-profile board-to-cable connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $22.05 | $22.05 |
| 10+ | $18.74 | $18.74 |
| 25+ | $17.57 | $17.57 |
| 48+ | $16.73 | $16.73 |
| 112+ | $15.93 | $15.93 |
| 256+ | $15.17 | $15.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
26 positions.
3.00mm (0.118 inches).
Varies by wire gauge.
250V.
Through hole, right angle.
-40°C to 125°C.
