| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,800 pcs
|
2800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| FCC Compliance | |
| Features | |
| Flammability Rating | |
| Housing Material | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Packaging Type | |
| Pocket Tape Depth | |
| Pocket Tape Pitch | |
| Pocket Tape Width | |
| Ratings | |
| Shielding | |
| Standard Package Quantity | |
| Tab Direction | |
| Termination | |
| Termination Style | |
| reel_diameter |

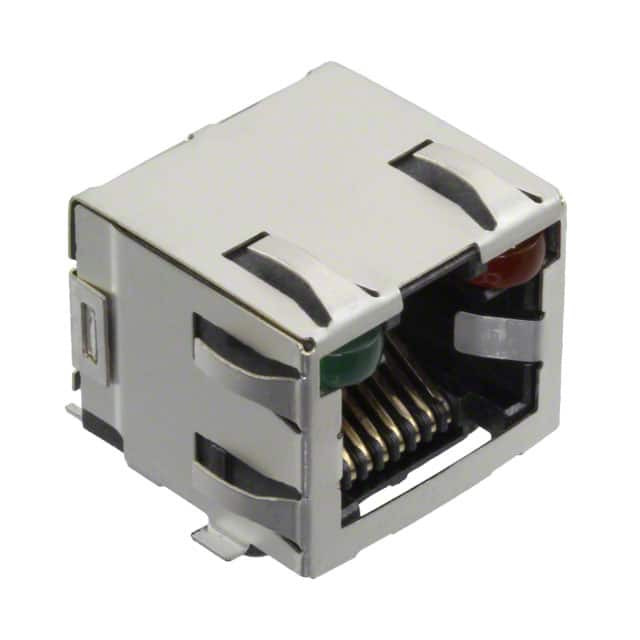

The TE Connectivity 2-6339191-1 is a single-port, shielded modular jack designed for 8p8c (RJ45, Ethernet) connectors. It features a right-angle (90°) orientation and surface-mount termination with solder contacts, making it suitable for compact PCB designs.
The connector is rated for Cat5 applications and includes a shielded housing with an EMI finger for enhanced electromagnetic interference protection. The jack cavity conforms to FCC Part 68, Subpart F regulations. It is equipped with green and orange LEDs for status indication.
The housing is made of high-temperature thermoplastic (LCP) with UL94V-0 flammability rating. Contacts are phosphor bronze with gold plating in the localized contact area (1.27µm minimum) and matte tin in the solder area (3.81µm minimum), over a nickel underplate (1.27µm minimum). The shield is copper zinc alloy preplated with matte tin over nickel.
The component is packaged in tape and reel (381mm reel, 44mm pocket tape width, 24mm pitch, 16.7mm depth) with 200 pieces per reel. Features include board guide and solder retention for reliable assembly.
It is a modular jack with 8 positions and 8 contacts (8p8c), commonly used for RJ45 Ethernet connections.
It is a surface-mount (SMT) connector with a right-angle (90°) orientation and solder termination.
Yes, it is shielded and includes an EMI finger for electromagnetic interference protection.
The jack has green and orange LEDs for status indication.
The housing is made of high-temperature thermoplastic (LCP) with a UL94V-0 flammability rating.
