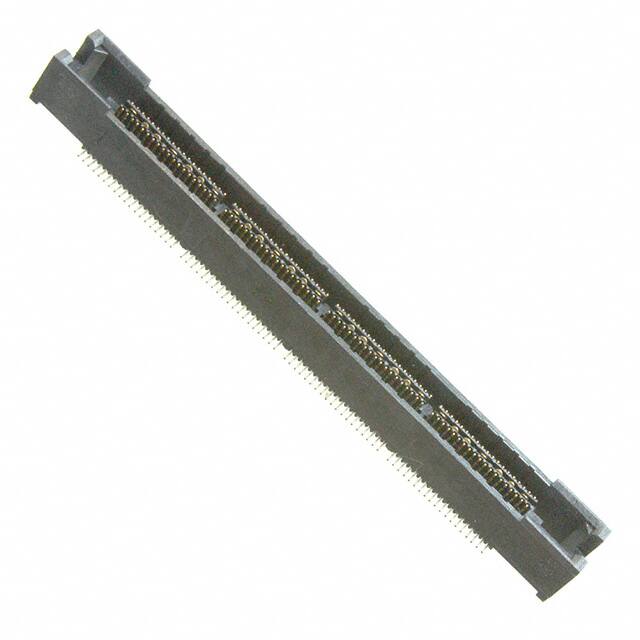

2-5767004-5 TE Connectivity 2-5767004-5 is a 152-position, 0.64mm pitch mezzanine connector receptacle with surface mount termination and gold contact finish.
Mfr Part #:

2-5767004-5

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 2-5767004-5 is a 152-position, 0.64mm pitch mezzanine connector receptacle with surface mount termination and gold contact finish.
✓ Total Stock: 500 pcs
$ Price Range: $89.99

2-5767004-5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tokyo Device ✓
Non-Authorised Inventory information
500 pcs
On Request
500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2-5767004-5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
Tape & Reel
View Similar Products (0)

2-5767004-5 Description

Short technical summary and product information.

The TE Connectivity 2-5767004-5 is a 152-position, 2-row receptacle connector designed for board-to-board mezzanine applications. It features a 0.64mm (0.025") contact pitch and surface mount termination, making it suitable for high-density interconnections. The contacts are gold-plated with a thickness of 30µin (0.76µm), ensuring reliable signal integrity and corrosion resistance.



This connector supports a wide range of mated stacking heights including 6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, and 22.86mm, providing flexibility for various board spacing requirements. The housing includes a board guide and a ground bus (plane) feature to assist alignment and improve electrical performance.



Designed for surface mount soldering, the component height above board is 0.236" (6.00mm). The connector is part of TE Connectivity's mezzanine connector family, offering robust mechanical and electrical characteristics for demanding electronic assemblies.

2-5767004-5 Quick Information

Product Type: Mezzanine (Board-to-Board) Connector
Canonical Name: Receptacle, Center Strip Contacts, 152 Position, 0.64mm Pitch, Surface Mount, Gold
Subcategory: Receptacle

2-5767004-5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

2-5767004-5 Estimated Pricing

Qty Low High
504+ $89.99 $89.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

2-5767004-5 Features

  • 152 positions in 2 rows.
  • 0.64mm (0.025") contact pitch.
  • Surface mount (SMD) termination.
  • Gold contact finish with 30µin thickness.
  • Supports multiple stacking heights (6.6mm to 22.86mm).

2-5767004-5 Applications

  • Board-to-board mezzanine interconnection in electronic systems.
  • High-density stacking in servers and networking equipment.
  • Suitable for telecom and datacom module assemblies.

2-5767004-5 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 2-5767004-5 have?

152 positions.

What is the pitch of this connector?

0.64mm (0.025").

What is the mounting type?

Surface Mount.

What is the contact finish?

Gold with 30µin (0.76µm) thickness.

What are the supported mated stacking heights?

6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, and 22.86mm.

How many rows does the connector have?

2 rows.

What special features does this connector include?

Board guide and ground bus (plane).
