| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flammability Rating | |
| Flange Feature | |
| Industrial Grade | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material | |
| Shell Material, Finish | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

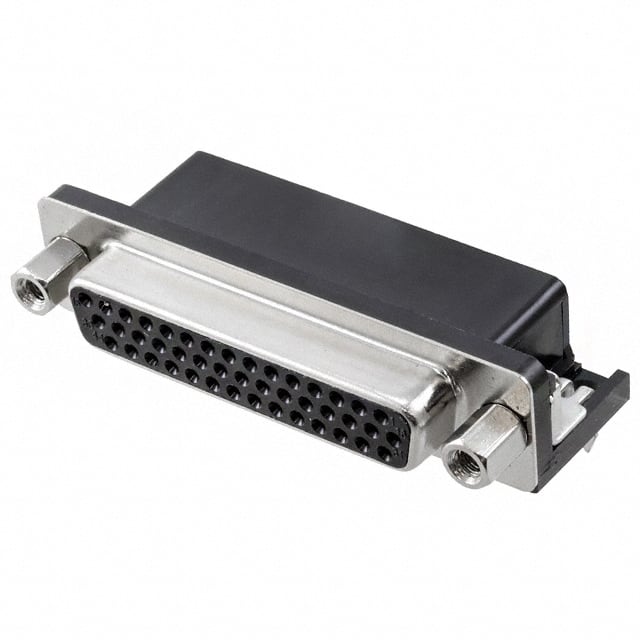

The TE Connectivity 2-5748482-5 is a high density D-Sub receptacle (female socket) with 44 positions arranged in 3 rows. It features a steel, nickel-plated shell with shell size 3 (DB, B) high density layout. The connector is designed for through-hole, right angle mounting with solder termination, making it suitable for compact PCB layouts where space is constrained.
Contact finish is gold with a thickness of 15.0µin (0.38µm), providing reliable signal integrity and corrosion resistance. The flange includes a mating side female screwlock (4-40) for secure mating, and board locks are integrated for additional mechanical retention during soldering. The insulator material is rated UL94 V-0 for flammability.
This connector is rated for 2A per contact and is intended for signal applications. The steel, nickel-plated shell offers durability and EMI shielding. The right angle orientation allows for low-profile cable-to-board connections.
44 positions arranged in 3 rows.
Through hole, right angle with solder termination.
2A per contact.
Gold, 15.0µin (0.38µm) thickness.
Yes, includes board lock feature.
