| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
630 pcs
|
630 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
32 pcs
|
32 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

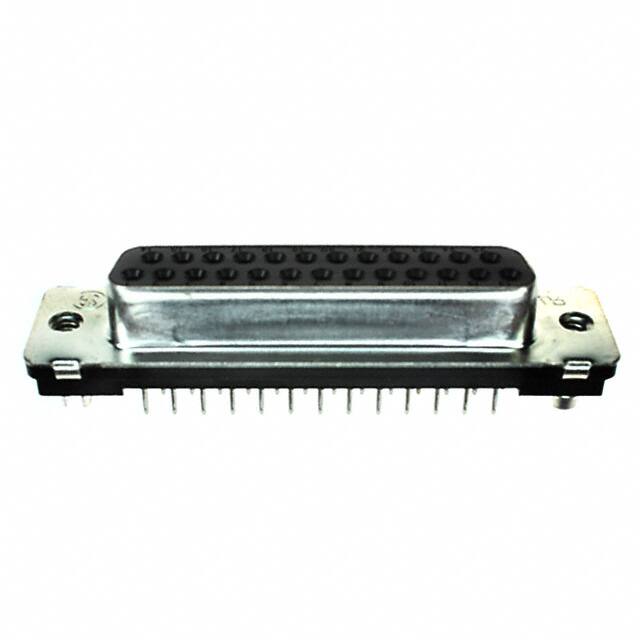

This TE Connectivity D-Sub receptacle (part number 2-5747708-0) features 25 female socket contacts arranged in a DB-25 (shell size 3) layout with 2 rows. The connector uses through hole mounting and solder termination for secure attachment to printed circuit boards.
The contacts are finished with 30.0µin gold plating, providing reliable signal transmission and corrosion resistance. The steel shell is tin plated and includes a flange feature with 4-40 threaded inserts for mating. A board lock feature aids in retention during soldering.
This connector is rated for 6A current per contact and is constructed with UL94 V-0 rated insulation material for flammability safety. It is designed for signal contact type applications in various electronic assemblies.
Receptacle with female sockets, D-Sub style.
25 positions arranged in 2 rows.
Through hole with solder termination.
6 amps per contact.
Gold, 30.0 microinches (0.76 µm).
Steel shell with tin plating.
UL94 V-0.
