| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
595 pcs
|
595 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
545 pcs
|
545 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

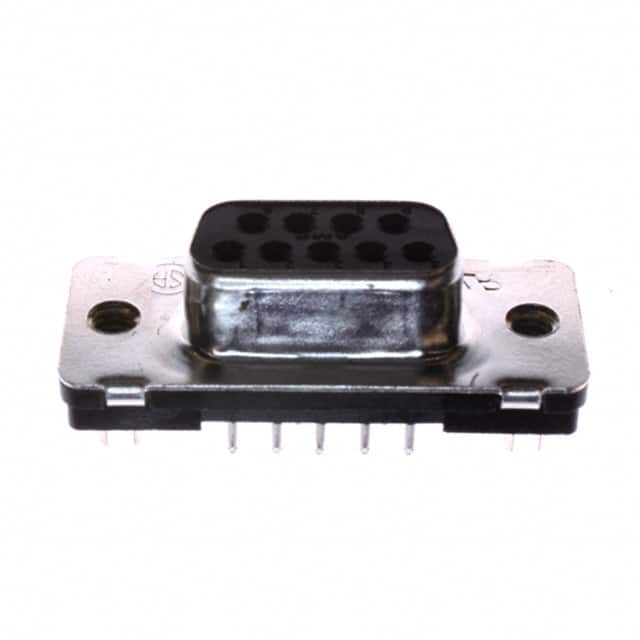

This TE Connectivity D-Sub receptacle connector (part number 2-5747706-0) is a 9-position, 2-row female connector designed for through hole mounting with solder termination. The connector features gold-plated contacts with 30µin thickness for reliable signal transmission and corrosion resistance. It is rated for 6A per contact and has a steel shell with tin plating. The shell size is DE-9 (E size) and includes a flange feature with 4-40 threaded inserts for secure mating. A board lock feature aids in retention during soldering. The insulator material has a UL94 V-0 flammability rating, suitable for various electronic applications.
9 positions in 2 rows.
6A per contact.
Through hole with solder termination.
Gold with 30µin thickness.
DE-9 (E size).
UL94 V-0.
Yes, includes board lock.
