| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Industrial Grade | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

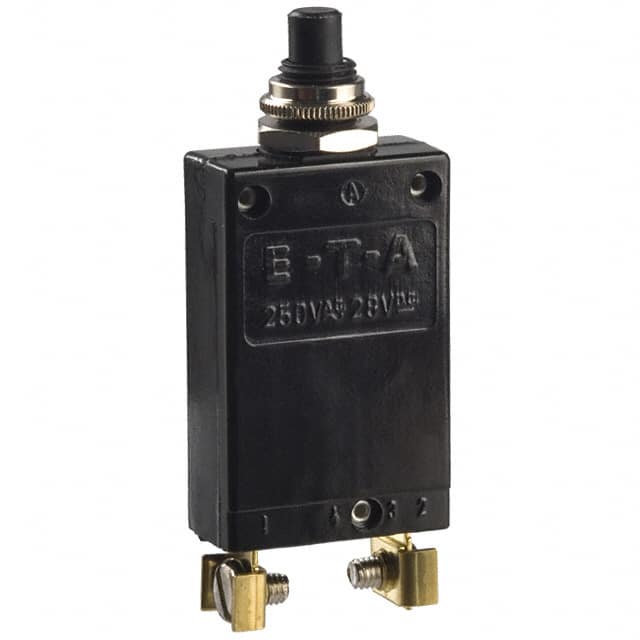

This E-T-A 2-5700-IG1-K10-DD-2A is a single-pole thermal overcurrent circuit breaker. It is designed for panel mounting and features a push-to-reset, trip-free, snap-action mechanism. The breaker is rated for 250 VAC and 28 VDC, with a current rating of 2A.
Key technical specifications include an ambient temperature range of -20 to +60 °C and an interrupting capacity of 8 x IN for currents up to 2.5A, and up to 300A for higher current ratings. It meets various approval standards including CSA, GB, IEC, and UL.
The device is approved to CBE standard EN 60934 (IEC 60934). The 2-5700 series can also be supplied as a push-push switch/circuit breaker. This specific model, 2-5700-IG1-K10-DD-2A, utilizes blade terminals and has a plastic threadneck with a metal hexnut.
Typical applications for this circuit breaker include motors, transformers, solenoids, battery chargers, power supplies, appliances, and machinery. Its robust design and thermal protection make it suitable for various industrial and electronic systems.
The circuit breaker is rated for 250 VAC and 28 VDC.
The rated current is 2A.
It is a thermal circuit breaker.
The ambient operating temperature range is -20 to +60 °C.
It is approved to CSA C22.2 No 235, GB 17701, IEC 60934, and UL1077.
It is a panel mount device.
