| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
384 pcs
|
384 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

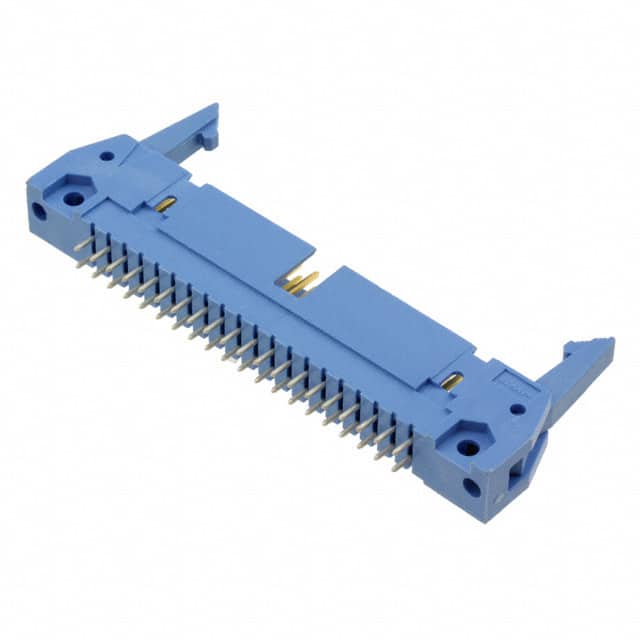

The 2-5499206-9 is a 40-position, 2-row, 2.54mm pitch header from TE Connectivity. The connector features a shrouded 4-wall design with latch lock/eject hooks for secure mating. It is through-hole mounted with solder termination and has a blue insulation body. The contacts are square male pins with tin plating (30µin thickness). The header is rated for 1A current and 250VAC, with an operating temperature range of -65°C to 105°C. The material is rated UL94 V-0 for flammability. This board-to-cable/wire style connector includes a keying slot and mounting flange for alignment and secure mounting.
This connector has 40 positions, all loaded, in a 2-row configuration.
The pitch is 2.54mm (0.100 inches).
The current rating is 1A.
The voltage rating is 250VAC.
The mounting type is through-hole with solder termination.
The operating temperature range is -65°C to 105°C.
The contacts are tin-plated with a thickness of 30µin (0.76µm).
