| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
528 pcs
|
528 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

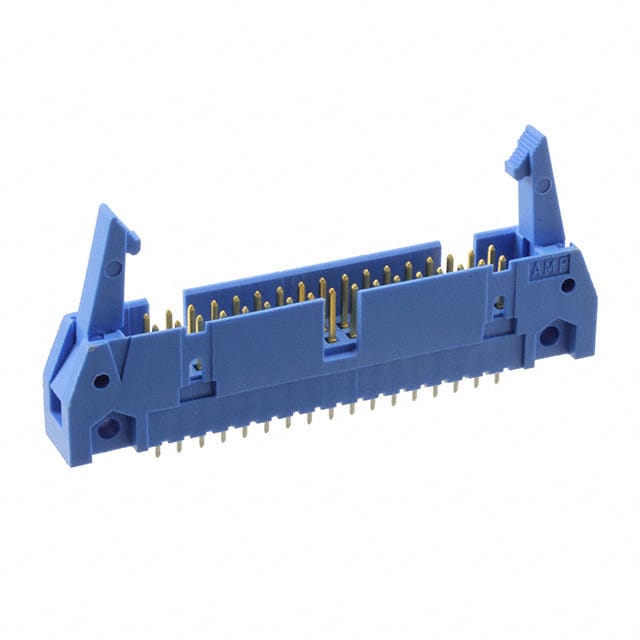

The TE Connectivity 2-5499206-8 is a 34-position male pin header designed for board-to-cable/wire connections. It features a 2.54mm pitch and dual-row configuration with all positions loaded. The connector is shrouded with a 4-wall design and includes latch lock/eject hooks for secure mating.
The header is rated for 1A current and 250VAC voltage, with an operating temperature range of -65°C to 105°C. The contact finish is tin with 30.0µin thickness, and the contact length is 6.10mm with an overall contact length of 16.23mm. The insulation height is 13.94mm and the insulator is blue UL94 V-0 rated material.
Mounting is through hole with solder termination. The connector also features a keying slot and mounting flange for alignment and secure attachment. This component is suitable for various interconnection applications requiring a reliable, shrouded header with locking mechanism.
34 positions.
2.54mm (0.100").
1A.
250VAC.
Through hole.
-65°C to 105°C.
Latch lock/eject hooks, long.
