| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
44 pcs
|
44 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

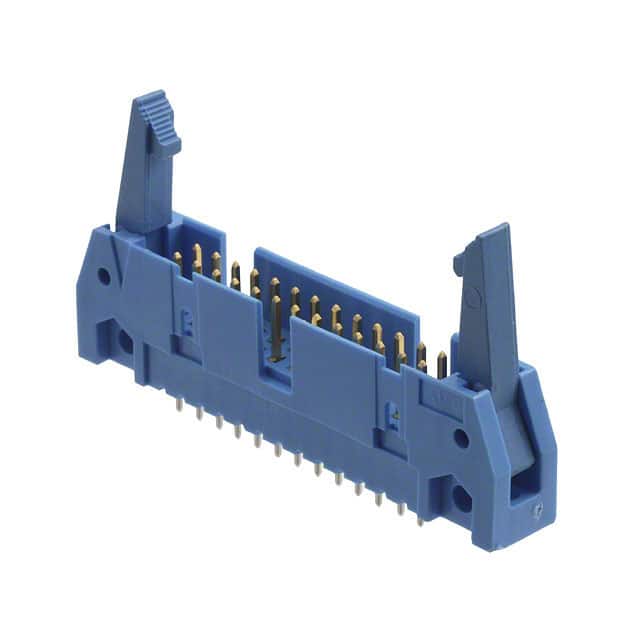

The TE Connectivity 2-5499206-6 is a 26-position, 2-row, shrouded header with male pins designed for board-to-cable/wire applications. It features a 2.54mm pitch and 2.54mm row spacing, making it suitable for standard ribbon cable or discrete wire connections. The header is through-hole mounted with solder termination and includes latch lock/eject hooks (long type) for secure mating and easy disconnection. The housing is blue with a UL94 V-0 flammability rating, and the square male pins are tin-plated with a 0.76µm finish. It also includes a keying slot and mounting flange for alignment and board retention. Rated for 1A at 250VAC, this connector operates across -65°C to 105°C, making it suitable for a range of industrial and commercial environments.
26 positions, all loaded, in 2 rows.
The pitch is 2.54mm (0.100") and the row spacing is also 2.54mm (0.100").
The current rating is 1A.
The voltage rating is 250VAC.
Through-hole mounting with solder termination.
Yes, it features a latch lock/eject hooks (long) type fastening.
Operating temperature is -65°C to 105°C.
