| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
432 pcs
|
432 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

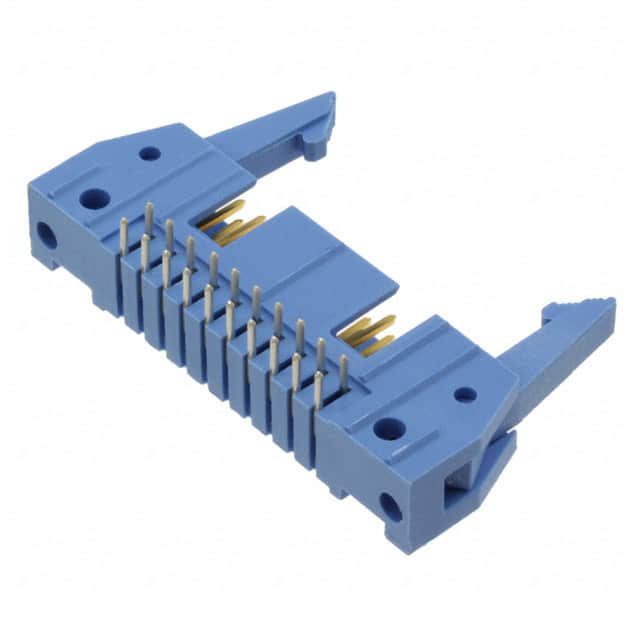

The TE Connectivity 2-5499141-4 is a 20-position, 2.54mm pitch, through-hole, right-angle shrouded header. It features male pin contacts with a tin finish, brass contact material, and a square contact shape. The insulator is blue, with a UL94 V-0 flammability rating. The connector is designed for board-to-cable/wire applications, and includes a keying slot and mounting flange for secure alignment. The fastening type is latch lock/eject hooks, long, providing reliable mating retention. The operating temperature range is -65°C to 105°C. The current rating is 1A per contact, and the voltage rating is 250VAC. This connector is suitable for various industrial and commercial applications where a robust, reliable connection is required.
20 positions, all loaded.
2.54mm (0.100")
1A per contact.
250VAC.
Through hole, right angle.
