| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Termination | |
| Termination Style |

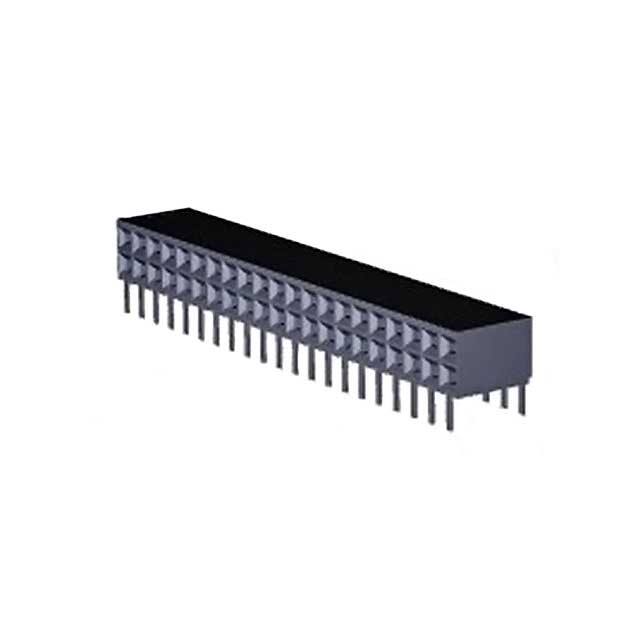

The TE Connectivity 2-535512-6 is a 42-position rectangular receptacle connector designed for reliable board-to-board connections. It features a 2.54mm (0.100") pitch with two rows of female socket contacts, all positions loaded. The connector uses a through-hole, right-angle mounting style with solder termination for secure attachment to PCBs.
Electrical specifications include a current rating of 2A per contact and an operating temperature range of -55°C to 125°C, suitable for demanding environments. The contacts are finished with tin-lead plating at 30µin (0.76µm) thickness, providing good solderability and durability. The insulation is black with a UL94 V-0 flammability rating, ensuring safety in high-temperature conditions.
Mechanically, the connector employs a push-pull fastening mechanism for easy mating and unmating. The insulation height is 6.05mm (0.238"), and the contact length is 2.92mm (0.115"). Row spacing matches the 2.54mm pitch, maintaining consistent alignment. This connector is commonly used in industrial control, data communication, and test equipment where compact, reliable interconnects are required.
42 positions.
2.54mm (0.100").
2A.
Through hole, right angle.
-55°C to 125°C.
Tin-lead with 30µin thickness.
Push-pull.
