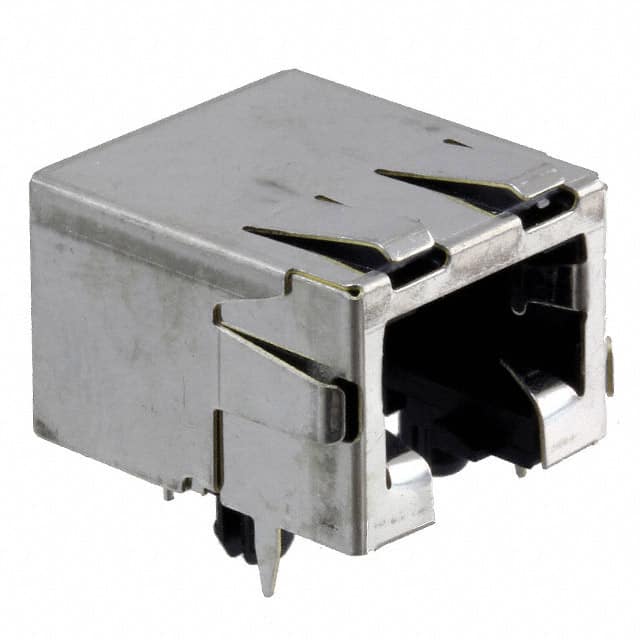

2-5338556-1 TE Connectivity 2-5338556-1 is a shielded modular jack with 8p8c (RJ45) configuration, 1 port, through hole mounting, right angle orientation, and board lock feature.
Mfr Part #:

2-5338556-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 2-5338556-1 is a shielded modular jack with 8p8c (RJ45) configuration, 1 port, through hole mounting, right angle orientation, and board lock feature.
✓ Total Stock: 1,520 pcs

2-5338556-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
1,520 pcs
On Request
1520 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2-5338556-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Features
LED Color
Mounting Type
Number of Ports
Number of Positions
Number of Rows
Orientation
Ratings
Shielding
Tab Direction
Termination
Termination Style
View Similar Products (0)

2-5338556-1 Description

Short technical summary and product information.

The TE Connectivity 2-5338556-1 is a single-port modular jack designed for RJ45 Ethernet applications. It features an 8p8c (8 position, 8 contact) configuration with a right-angle (90°) orientation for through-hole mounting. The connector is fully shielded and includes an EMI finger for enhanced electromagnetic interference protection. A board lock feature ensures secure attachment to the PCB during soldering.



The jack is rated Category 3 (Cat3), suitable for voice and low-speed data transmission up to 16 MHz. Contacts are made of phosphor bronze with gold finish for reliable conductivity and corrosion resistance. The tab direction is down, and the connector does not contain LEDs. Termination is via solder. This part is RoHS3 and REACH compliant (unverified).

2-5338556-1 Quick Information

Product Type: Modular Connector Jack
Canonical Name: TE Connectivity 2-5338556-1 Modular Jack, 8p8c (RJ45), 1 Port, Through Hole, Right Angle, Shielded
Subcategory: RJ45 Jack

2-5338556-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

2-5338556-1 Features

  • Shielded with EMI finger for noise protection.
  • Right angle orientation for space-saving PCB layout.
  • Board lock feature for secure PCB mounting.
  • Gold-plated phosphor bronze contacts for reliability.
  • Cat3 rated for voice and low-speed data.

2-5338556-1 Applications

  • Used in Ethernet network interface cards.
  • Ideal for telecom and voice applications.
  • Suitable for industrial control panels.
  • Common in consumer networking equipment.

2-5338556-1 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the connector type and number of positions?

This is a jack connector with 8 positions and 8 contacts (8p8c), commonly used for RJ45 Ethernet.

What is the mounting type and orientation?

It is a through-hole mount connector with a 90° right angle orientation.

Is this connector shielded?

Yes, it is shielded and includes an EMI finger for electromagnetic interference protection.

What is the contact finish and material?

The contacts have a gold finish and are made of phosphor bronze.

What is the category rating of this jack?

It is rated Category 3 (Cat3), suitable for voice and low-speed data up to 16 MHz.
