| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
78 pcs
|
78 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel |

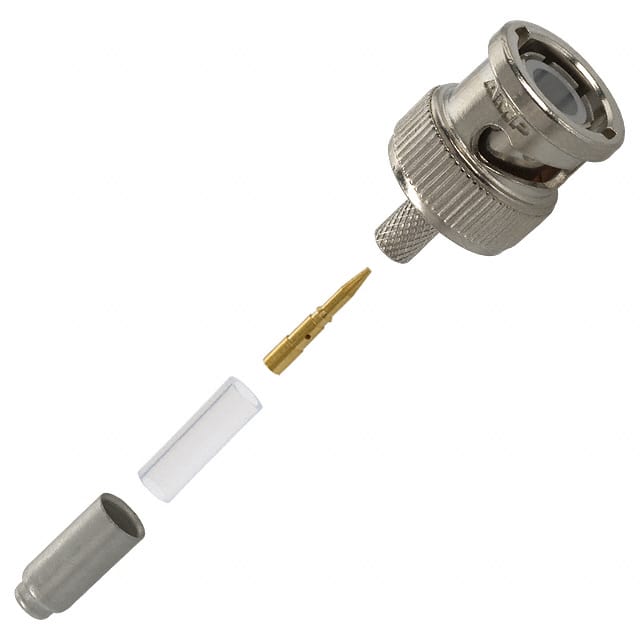

The 2-5221128-3 is a BNC plug connector from TE Connectivity featuring a male pin contact. It is designed for 50 Ohm impedance and supports frequencies up to 4 GHz, making it suitable for RF applications. The connector uses crimp termination for both the center contact and shield, ensuring reliable connections. It has a free hanging (in-line) mounting style with a bayonet lock fastening mechanism for quick and secure mating. The center contact is made of brass, and the housing has a silver color. This connector is compatible with RG-179 and RG-187 coaxial cables.
Free hanging (in-line).
50 Ohm.
4 GHz.
Crimp for both contact and shield.
RG-179 and RG-187.
Bayonet lock.
Brass.
