| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
185 pcs
|
185 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Halogen Free | |
| Industrial Grade | |
| Insulation | |
| Lead Style | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| SVHC Present | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

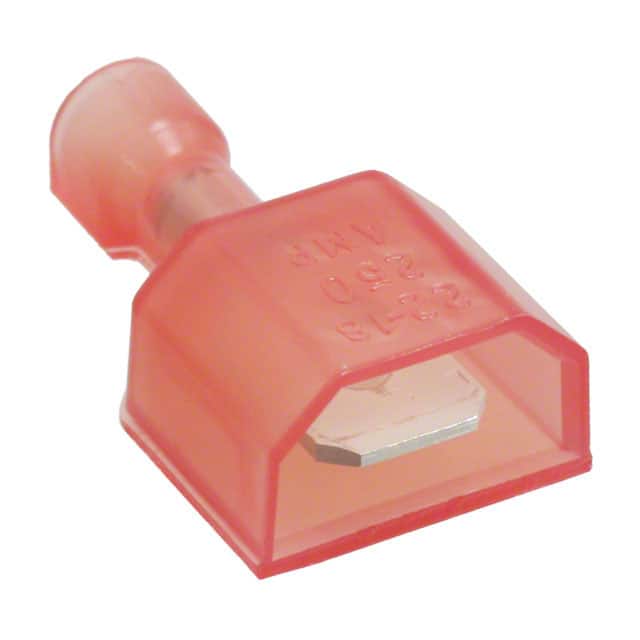

The TE Connectivity 2-520103-2 is a male quick connect tab terminal designed for 18-22 AWG wire. It features a standard terminal type with a tab width of 0.250" (6.35mm) and a tab thickness of 0.032" (0.81mm). The contact is made of brass with a tin finish, providing good conductivity and corrosion resistance. The terminal is fully insulated with a red housing, offering strain relief and protection against short circuits.
This terminal uses a crimp termination method and is intended for free hanging (in-line) mounting. It is commonly used in wire-to-wire or wire-to-board quick disconnect applications, such as in automotive, appliance, and industrial control systems. The overall length of the terminal is 21.72mm (0.855").
The part is RoHS3 compliant and REACH unaffected, though these compliance claims are unverified. No datasheet is currently available for this product.
18-22 AWG.
0.250" (6.35mm).
0.032" (0.81mm).
Yes, it is fully insulated.
Red.
Crimp.
Free hanging (in-line).
