| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

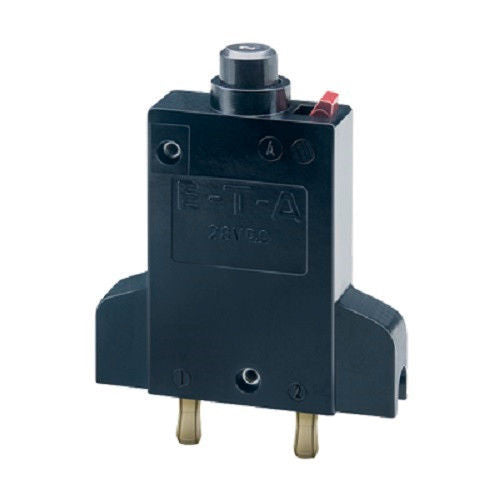

This E-T-A 2-5200-H-5A is a single-pole thermal circuit breaker with a push-to-reset, tease-free, and trip-free snap action mechanism. It is designed for plug-in mounting with E-T-A sockets and is suitable for extra-low voltage wiring systems and components.
The circuit breaker has a current rating of 5A and a voltage rating of 28V DC. It offers a typical life of 5,000 operations at 2 x IN inductive load. The operating temperature range is -20°C to +60°C (-4°F to +140°F).
Key technical data includes an interrupting capacity of 400A for current ratings between 6A and 16A, and UL-rated interrupting capacities of 2,000A at AC 250V and 2,500A at DC 50V. The degree of protection for the operating area is IP40, while the terminal area is IP00.
Environmental testing includes resistance to vibration (8g), shock (25g), corrosion (96 hours salt mist), and humidity (240 hours at 95% RH). The approximate mass of the unit is 35g. Approvals include CSA C22.2 No 235, IEC 60934, and UL1077.
The current rating is 5A.
The voltage rating is 28V DC.
It has a push-to-reset actuator.
It is a single-pole circuit breaker.
The operating temperature range is -20°C to +60°C (-4°F to +140°F).
The degree of protection for the operating area is IP40.
