| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,671 pcs
|
2671 pcs | On Request | 1 | On Request | On Request | 1748+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

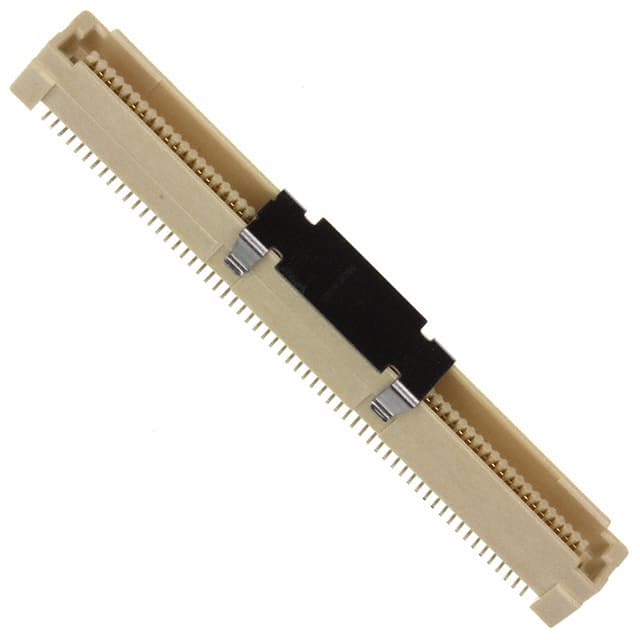

The TE Connectivity 2-5177986-5 is a 120-position plug connector designed for mezzanine board-to-board applications. It features center strip contacts with a 0.8mm pitch and two rows of contacts. The connector is surface mount and has a height above board of 6.85mm. It supports multiple mated stacking heights: 7mm, 11mm, 15mm, and 19mm, providing flexibility in board spacing. The contacts are gold plated with a thickness of 8µin (0.203µm) for reliable electrical performance. A board guide feature aids in alignment during mating. This connector is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited). It is suitable for high-density interconnections in various electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.44 | $9.44 |
| 10+ | $8.50 | $8.50 |
| 25+ | $8.01 | $8.01 |
| 50+ | $7.80 | $7.80 |
| 100+ | $7.60 | $7.60 |
| 250+ | $6.78 | $6.78 |
| 450+ | $6.37 | $6.37 |
| 900+ | $5.82 | $5.82 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
120 positions.
0.80mm.
Surface mount.
Gold with 8µin thickness.
6.85mm.
7mm, 11mm, 15mm, and 19mm.
Yes, it includes a board guide.
