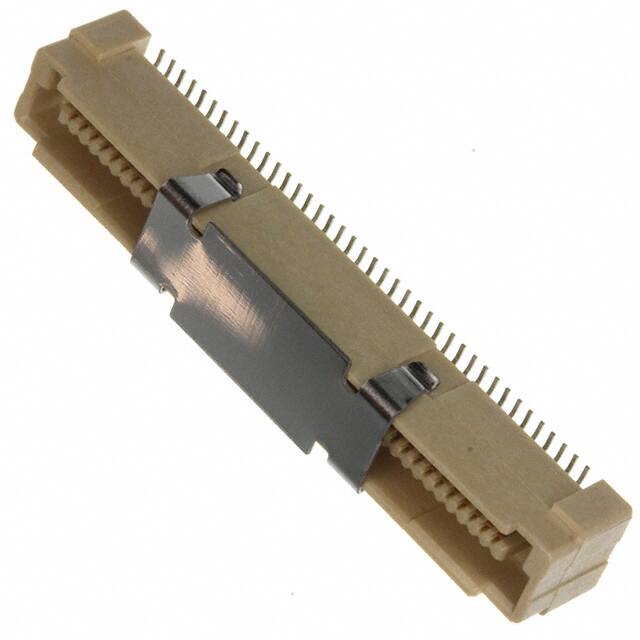

2-5177986-3 TE Connectivity 2-5177986-3 is a 80-position, 0.8mm pitch surface mount plug connector with gold contacts. It features a board guide and supports mated stacking heights of 7mm, 11mm, 15mm, and 19mm.
Mfr Part #:

2-5177986-3

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 2-5177986-3 is a 80-position, 0.8mm pitch surface mount plug connector with gold contacts. It features a board guide and supports mated stacking heights of 7mm, 11mm, 15mm, and 19mm.
✓ Total Stock: 1,400 pcs

2-5177986-3 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
700 pcs
On Request
700 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
700 pcs
On Request
700 pcs On Request 1 On Request On Request 1419 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2-5177986-3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
Tape & Reel
View Similar Products (0)

2-5177986-3 Description

Short technical summary and product information.

TE Connectivity 2-5177986-3 is a 80-position, 2-row plug connector with center strip contacts, designed for board-to-board mezzanine applications. It features a 0.8mm pitch and surface mount mounting, making it suitable for high-density electronic assemblies.



The connector has gold-plated contacts with a thickness of 8µin (0.203µm), ensuring reliable electrical connections. It includes a board guide feature for proper alignment during assembly. The mated stacking heights of 7mm, 11mm, 15mm, and 19mm provide flexibility in board spacing.



This plug connector is part of TE Connectivity's range of mezzanine connectors, designed for applications requiring compact and reliable interconnections. The surface mount package allows for efficient automated assembly processes.

2-5177986-3 Quick Information

Product Type: Board-to-Board Connector Plug
Canonical Name: TE Connectivity 2-5177986-3 80 Position 0.8mm Pitch Surface Mount Plug Connector
Subcategory: Board-to-Board Connector

2-5177986-3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

2-5177986-3 Features

  • 80 position, 2 row plug connector.
  • 0.8mm pitch for high-density designs.
  • Surface mount mounting for compact assembly.
  • Gold contact finish for reliable connections.
  • Board guide feature for alignment.

2-5177986-3 Applications

  • For mezzanine board-to-board connections.
  • Used in high-density electronic assemblies.
  • Suitable for compact electronic devices.
  • Applied in telecommunications equipment.
  • Used in industrial control systems.

2-5177986-3 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

80 positions.

What is the pitch?

0.80mm (0.031").

What is the mounting type?

Surface Mount.

How many rows does it have?

2 rows.

What is the contact finish?

Gold with 8µin thickness.

What are the mated stacking heights?

7mm, 11mm, 15mm, 19mm.

Does it have a board guide?

Yes, it features a board guide.
