| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
43 pcs
|
43 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

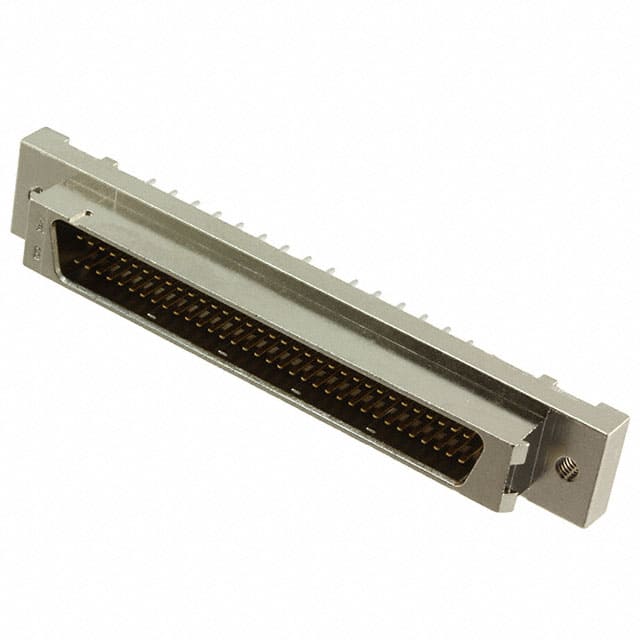

This TE Connectivity D-Sub connector cap features 68 male pin positions in a 2-row arrangement. The connector uses a D-Type shell style with a 0.050 inch pitch and 0.100 inch row-to-row spacing. Contacts are signal type with a 30.0 microinch gold finish for reliable conductivity.
Through hole mounting with solder termination provides a secure mechanical and electrical connection. The zinc shell with nickel plating offers durability, and the housing/shell flange feature (M2.5) enables panel mounting. An integral shield provides electromagnetic interference protection.
Rated for 1 amp current, this connector is suitable for data and signal applications requiring a high-density D-Sub interface. The vertical orientation allows for straightforward PCB assembly.
The connector is a D-Type cap with male pins.
This connector has 68 positions arranged in 2 rows.
It is a through hole mounted connector with solder termination.
The contact finish is gold with a thickness of 30.0 microinches (0.76 micrometers).
The shell material is zinc with a nickel plated finish.
Yes, this connector features shielding.
The current rating is 1 ampere.
