| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

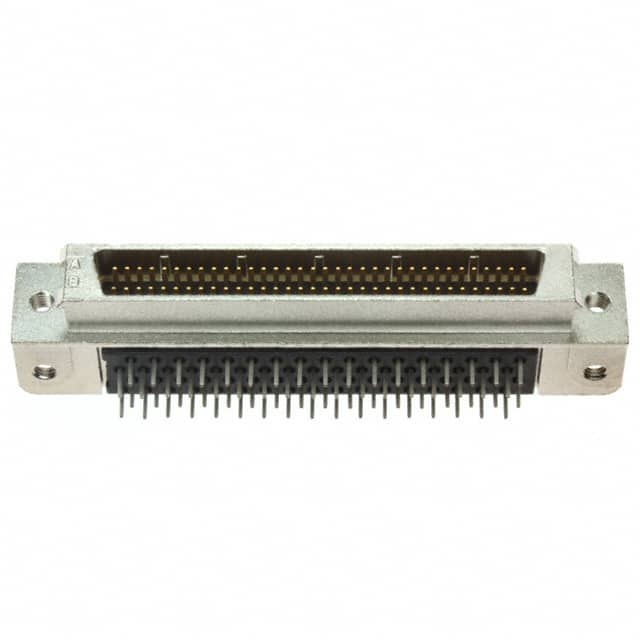

This D-Sub connector cap from TE Connectivity features 68 male pins arranged in 2 rows, with a 0.050 inch pitch and 0.100 inch row-to-row spacing. It is designed for through hole, right angle mounting and terminated via solder. The contacts are gold plated with a thickness of 30.0 microinches (0.76 micrometers) for reliable signal transmission. The shell is made of zinc with nickel plating, and the connector is shielded to reduce electromagnetic interference. It includes a flange feature with housing/shell (M2.5) and latchblocks for secure mating. The current rating is 1A per contact. This connector is suitable for applications requiring high-density D-sub connections in a compact backset spacing of 0.149 inches (3.80 mm).
| Qty | Low | High |
|---|---|---|
| 1+ | $29.62 | $29.62 |
| 12+ | $26.97 | $26.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
68 positions.
0.050 inch (1.27 mm) pitch with 0.100 inch row spacing.
1A per contact.
Through hole, right angle mounting with solder termination.
Gold plating with 30.0 microinches (0.76 micrometers) thickness.
2 rows.
Yes, it features a shielded design.
