| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16,000 pcs
|
16000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accepts Pin Diameter | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Flange Diameter | |
| Length | |
| Mounting Hole Diameter | |
| Socket Depth | |
| Tail Type | |
| Tape & Reel | |
| Termination |

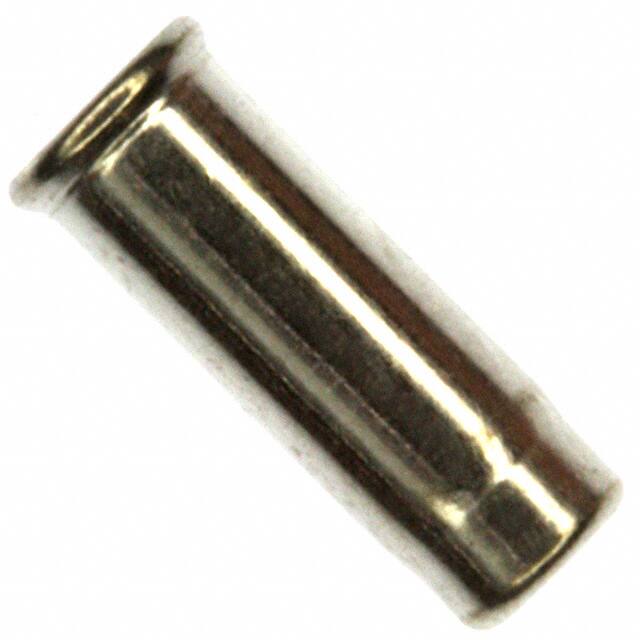

The TE Connectivity 2-5050871-3 is a pin receptacle socket designed for reliable interconnection in printed circuit board assemblies. It accepts pin diameters ranging from 0.056" to 0.065" (1.42mm to 1.65mm), making it suitable for a variety of pin connector systems.
The contact is made from beryllium copper with a gold finish of 0.76µm (30µin) thickness, ensuring excellent conductivity and corrosion resistance. The socket features a solder termination with no tail design, and a socket depth of 6.99mm (0.275") for secure pin retention.
Mechanical dimensions include an overall length of 7.32mm (0.288"), a flange diameter of 3.00mm (0.118"), and a recommended mounting hole diameter of 0.101" to 0.103" (2.57mm to 2.62mm). The part is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited).
It accepts pin diameters from 0.056" to 0.065" (1.42mm to 1.65mm).
The contact is made of beryllium copper with a gold finish of 0.76µm (30µin) thickness.
The overall length is 7.32mm (0.288").
The socket depth is 6.99mm (0.275").
The termination is solder with no tail.
The flange diameter is 3.00mm (0.118").
The recommended mounting hole diameter is 0.101" to 0.103" (2.57mm to 2.62mm).
