| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Tape & Reel | |
| Termination | |
| Termination Style |

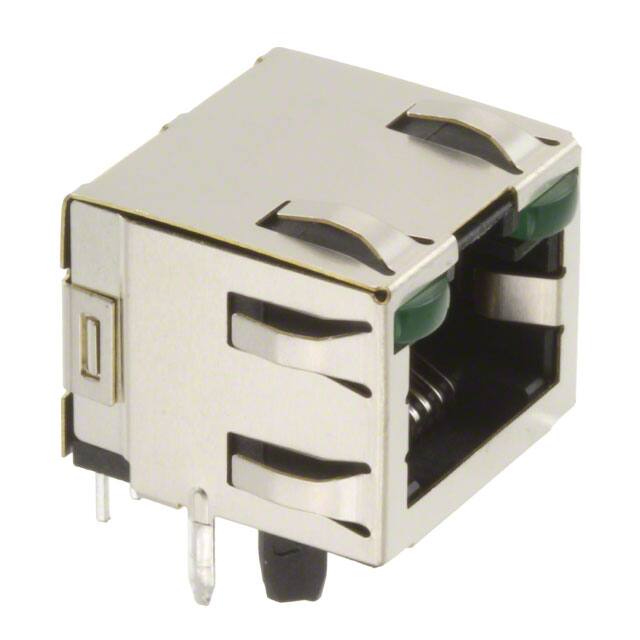

The TE Connectivity 2-406549-5 is a modular connector jack designed for Ethernet applications. It features an 8p8c (RJ45) configuration with a single port, making it suitable for standard network connections. The connector is through hole mounted with a 90° right angle orientation and tab direction up, facilitating easy integration onto PCBs.
This jack is shielded with an EMI finger to reduce electromagnetic interference, and includes a board guide for accurate placement during assembly. The contacts are made of phosphor bronze with a gold finish, ensuring reliable electrical performance and corrosion resistance. The connector is rated for Cat5 applications, supporting data rates up to 100 MHz.
The part includes dual green LEDs for visual status indication. Termination is via solder, and the connector is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).
It is a modular jack with 8p8c (RJ45, Ethernet) configuration, 1 port, 1 row.
Through hole mounting with 90° right angle orientation and tab direction up.
Yes, it is shielded with an EMI finger.
Gold finish on phosphor bronze contacts.
It is rated Cat5.
Yes, it has dual green LEDs.
Solder termination.
