| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,166 pcs
|
5166 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,205 pcs
|
2205 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| SVHC Present | |
| Shielding | |
| Tab Direction | |
| Tape & Reel | |
| Termination |

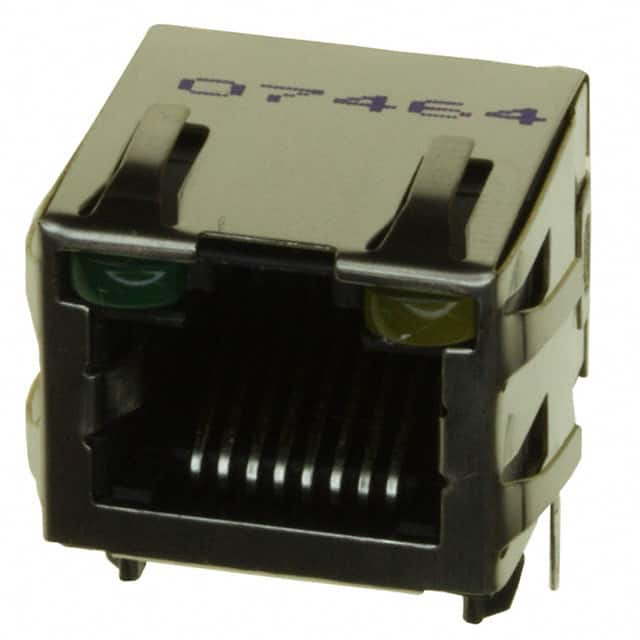

The TE Connectivity 2-406549-4 is a single-port modular jack connector designed for Ethernet applications. It features 8 positions and 8 contacts (8P8C) in a right-angle orientation, making it suitable for edge-mounted or compact PCB layouts. The connector is shielded with an EMI finger for enhanced electromagnetic interference protection, and includes a board guide for accurate alignment during assembly.
Contact material is phosphor bronze with a gold finish, ensuring reliable signal integrity over repeated mating cycles. The jack is rated for Cat5 performance, supporting 100 MHz bandwidth typical for 10/100BASE-T Ethernet. It includes green and yellow LED indicators for link/activity status.
Mounting is through hole with solder termination, providing a robust mechanical connection. The tab direction is up, compatible with standard RJ45 plugs. This connector is RoHS3 compliant and has an MSL of 1 (unlimited floor life).
This is a modular jack with 8 positions and 8 contacts (8P8C), commonly used for RJ45 Ethernet connections.
Through hole mounting with solder termination.
Yes, it is shielded and includes an EMI finger for electromagnetic interference protection.
Contacts are phosphor bronze with a gold finish.
Right angle (90° angle) orientation.
Yes, it has green and yellow LEDs.
Rated for Cat5, supporting frequencies up to 100 MHz.
