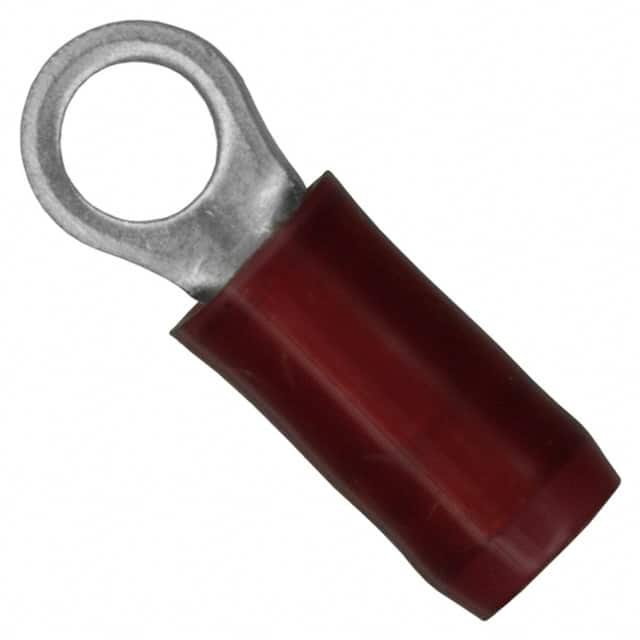

2-36149-2 Ring terminal for 16-22 AWG wire, #6 stud size, insulated, crimp termination. Features serrated termination for secure connection.
Mfr Part #:

2-36149-2

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
Ring terminal for 16-22 AWG wire, #6 stud size, insulated, crimp termination. Features serrated termination for secure connection.
✓ Total Stock: 5,000 pcs

2-36149-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2-36149-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Finish
Contact Material
Features
Halogen Free
Insulation
Length
Mounting Type
SVHC Present
Stud
Tape & Reel
Terminal Type
Termination
Termination Style
Thickness
Width
Wire Gauge
View Similar Products (0)

2-36149-2 Description

Short technical summary and product information.

TE Connectivity 2-36149-2 is a ring terminal designed for 16-22 AWG wire. It has a #6 stud size and is insulated with a red color code. The terminal is made of copper with a tin finish.



The terminal uses a crimp termination and features serrated termination for improved wire retention. The mounting type is free hanging (in-line). Dimensions: length 17.07mm, width 5.54mm, thickness 0.79mm.



Suitable for various electrical connections where a secure ring terminal is needed. Commonly used in automotive, industrial, and general wiring applications.

2-36149-2 Quick Information

Product Type: Ring Connector
Series: PIDG
Canonical Name: TE Connectivity 2-36149-2 Ring Terminal, 16-22 AWG, #6 Stud, Insulated, Crimp
Subcategory: Insulated Ring Connectors

2-36149-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

2-36149-2 Features

  • Insulated ring terminal for 16-22 AWG wire.
  • #6 stud size with crimp termination.
  • Serrated termination for secure wire grip.
  • Tin-plated copper contact material.
  • Red color coding for gauge identification.

2-36149-2 Applications

  • Used in automotive wiring harnesses.
  • Ideal for industrial control panels.
  • Suitable for general electrical termination.
  • Common in home appliance connections.

2-36149-2 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the mounting type for this ring terminal?

Free hanging (in-line) mounting.

What wire gauge does this terminal accommodate?

16-22 AWG.

What stud size is this terminal designed for?

#6 stud.

What is the termination method?

Crimp termination.

What is the contact material and finish?

Copper contact with tin finish.

What are the dimensions of this terminal?

Length 17.07mm, width 5.54mm, thickness 0.79mm.

Is the terminal insulated?

Yes, it is insulated and color-coded red.
