| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,345 pcs
|
4345 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

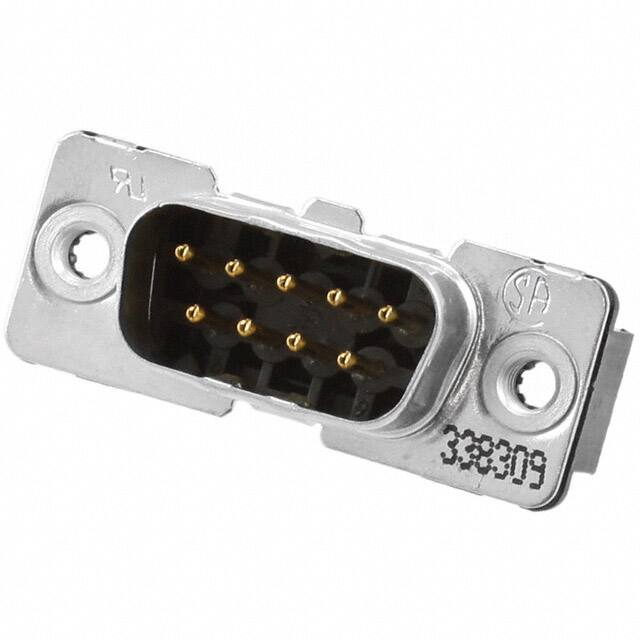

The TE Connectivity 2-338309-2 is a D-Sub connector plug featuring 9 male pins arranged in 2 rows. It uses a through-hole mounting style with solder termination, making it suitable for permanent PCB connections. The shell size is 1 (DE, E), constructed from steel with a tin-plated finish for durability and EMI shielding. The flange includes M3 threaded holes on the mating side for secure panel mounting. This connector is equipped with board locks and grounding indents to enhance mechanical retention and signal integrity. The contacts are gold-plated, ensuring reliable low-resistance connections over many insertion cycles. The insulator material meets UL94 V-0 flammability rating, making it suitable for environments requiring fire safety. Designed for signal applications, this connector is commonly used in data communication, industrial control, and instrumentation equipment where a standard 9-pin D-Sub interface is required.
This connector has 9 positions (9 pins) arranged in 2 rows.
The current rating is 6A per contact.
It is a through-hole mount with solder termination.
The contact finish is gold.
The shell is steel with a tin-plated finish.
The insulator material has a UL94 V-0 flammability rating.
Yes, it features board locks and grounding indents.
