| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Frequency - Max | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

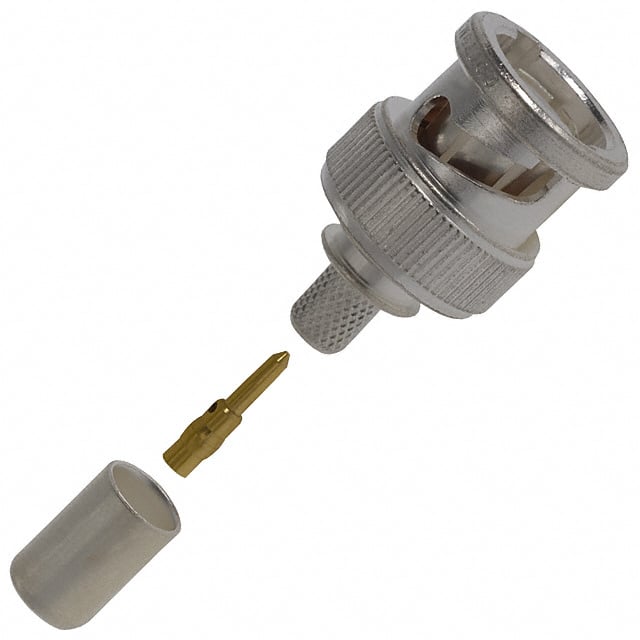

The 2-331350-1 is a BNC plug connector from TE Connectivity designed for RF coaxial cable applications. It features a male pin center contact made of brass and a silver-plated housing. The connector offers a 50 Ohm impedance and supports frequencies up to 4 GHz.
Termination is accomplished via crimp for both the center contact and shield, ensuring reliable electrical and mechanical connections. The bayonet lock fastening type provides quick and secure mating. This connector is intended for free hanging (in-line) mounting and is compatible with cable groups RG-58, 58A, 58B, and 58C.
Typical applications include RF signal transmission in telecommunications, test equipment, and networking infrastructure where a reliable 50 Ohm interface is required.
50 Ohm.
4 GHz.
Crimp termination for both the center contact and shield.
RG-58, 58A, 58B, and 58C.
Free hanging (in-line).
Bayonet lock.
Brass.
