| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
48,581 pcs
|
48581 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
14,700 pcs
|
14700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accepts Pin Diameter | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Flange Diameter | |
| Length | |
| Mounting Hole Diameter | |
| Mounting Type | |
| Socket Depth | |
| Tail Type | |
| Tape & Reel | |
| Termination | |
| Termination Style |

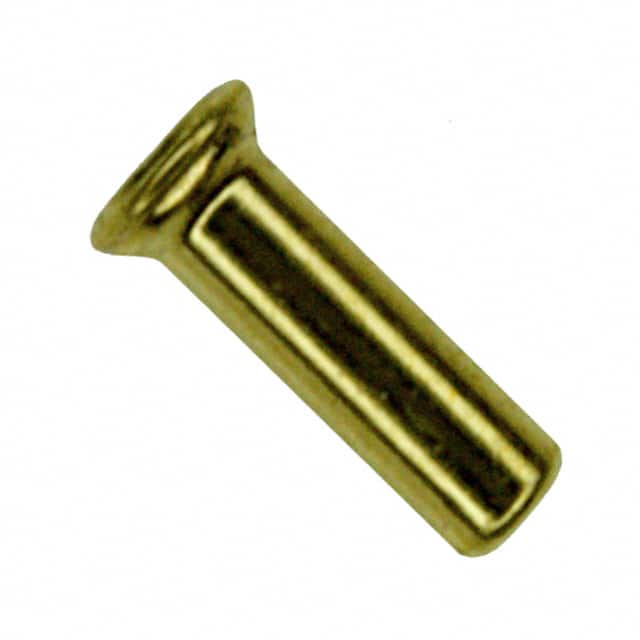

This PC pin receptacle from TE Connectivity is designed to accept pin diameters ranging from 0.013 to 0.020 inches (0.33mm to 0.51mm). The contact is made of beryllium copper with a gold finish of 30 microinches (0.76 micrometers) thickness, ensuring reliable conductivity and corrosion resistance. Termination is via solder, with a through-hole mounting style that requires a mounting hole diameter of 0.040 to 0.041 inches (1.02mm to 1.04mm).
The receptacle has a no-tail configuration with an overall length of 3.61mm (0.142 inches) and a socket depth of 3.30mm (0.130 inches). The flange diameter is 1.50mm (0.059 inches). It is suitable for applications requiring a secure, low-profile connection for discrete wires or component leads. The component is listed as RoHS3 compliant and REACH unaffected, though these certifications are unverified.
0.013 to 0.020 inches (0.33mm to 0.51mm).
Beryllium copper with gold plating, 30 microinches (0.76 micrometers) thick.
Through-hole with solder termination.
Length 3.61 mm, socket depth 3.30 mm.
RoHS3 Compliant (unverified).
