| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,850 pcs
|
1850 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Insulation | |
| Length | |
| Mounting Type | |
| Stud | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Termination Method | |
| Thickness | |
| Width | |
| Wire Gauge |

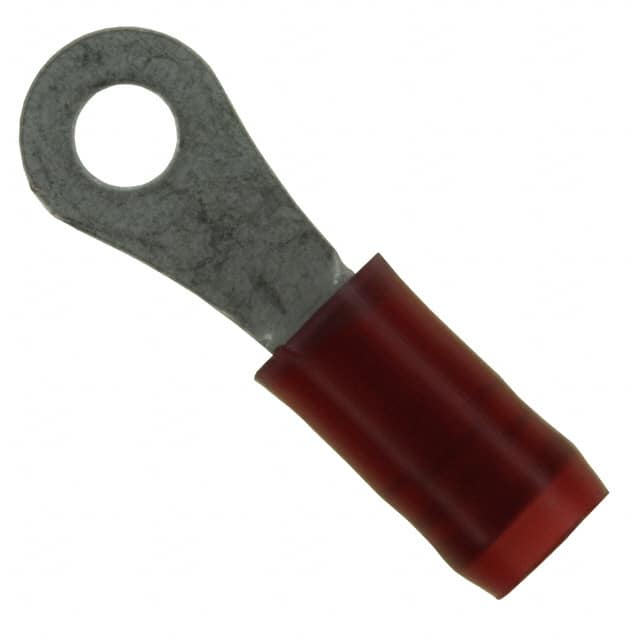

The TE Connectivity 2-323758-1 is an insulated circular ring terminal designed for reliable wire termination. It accepts wire sizes from 16 to 22 AWG and features a #4 stud size for secure connection to a screw or stud. The terminal uses a crimp termination method for a permanent, gas-tight connection.
The contact is made of copper with a tin plating, providing good conductivity and corrosion resistance. The terminal is insulated with a red color-coded vinyl insulation. It includes a serrated termination feature for improved wire grip and electrical contact. The dimensions are 0.79 mm thick, 6.35 mm wide, and 21.44 mm long.
This part is designed for free hanging (in-line) mounting, suitable for applications where the terminal is not fixed to a board. The product is RoHS3 and REACH compliant, and has an MSL of 1 (unlimited).
The 2-323758-1 accepts 16 to 22 AWG wire.
The stud size is #4.
Yes, the terminal is insulated.
The termination method is crimp.
The mounting type is free hanging (in-line).
