| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Halogen Free | |
| Insulation | |
| Length | |
| Mounting Type | |
| SVHC Present | |
| Stud | |
| Stud Size | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Thickness | |
| Width | |
| Wire Gauge |

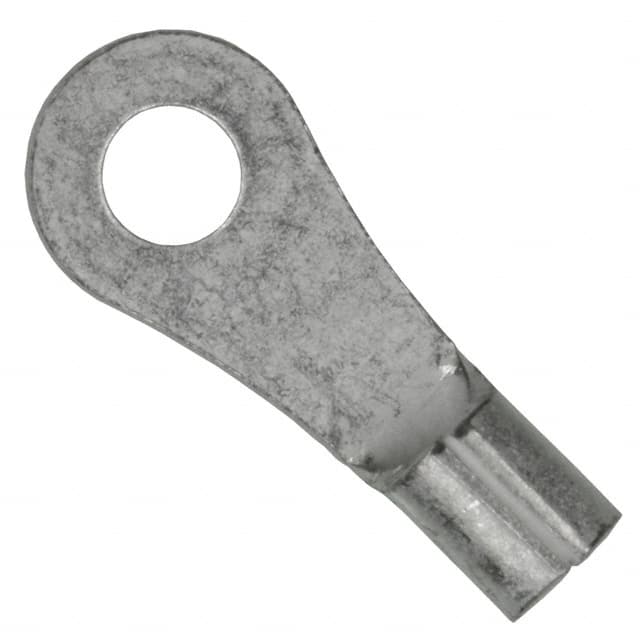

The 2-323096-2 from TE Connectivity is a non-insulated circular ring terminal designed for 16-22 AWG wire. It accommodates a #4 stud size and uses a crimp termination style. The contact is made of copper with a tin finish, ensuring reliable conductivity and corrosion resistance. Mechanical dimensions include a thickness of 0.79mm (0.031"), a width of 6.35mm (0.250"), and a length of 15.77mm (0.621").
This terminal features a brazed seam and serrated termination for secure wire grip and mechanical stability. It is intended for free hanging (in-line) mounting applications where a compact, reliable ring connection is required. The brazed seam construction enhances durability, while the serrated inner barrel provides strain relief and low contact resistance.
16-22 AWG
#4 stud
No, it is non-insulated.
Crimp termination.
Copper contact with tin finish.
Free hanging (in-line) mounting.
Thickness 0.79mm, width 6.35mm, length 15.77mm.
