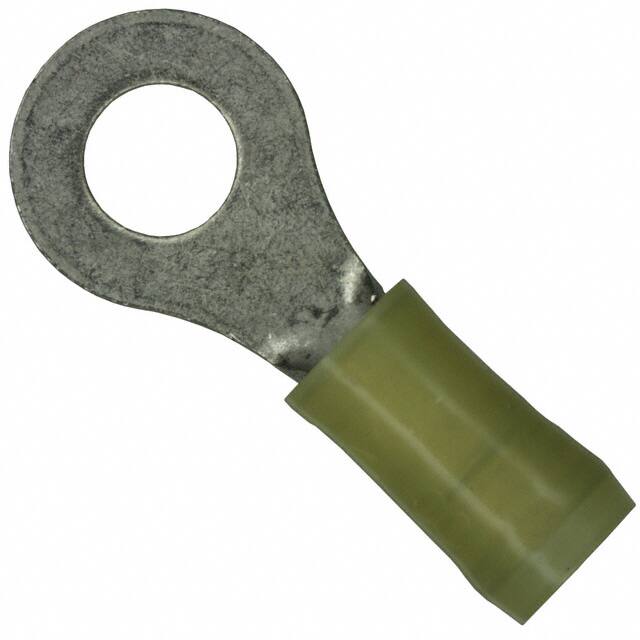

2-320569-3 TE Connectivity 2-320569-3 is an insulated ring terminal for 10-12 AWG wire with a 1/4 stud size. It features a crimp termination and tin-plated copper contact.
Mfr Part #:

2-320569-3

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 2-320569-3 is an insulated ring terminal for 10-12 AWG wire with a 1/4 stud size. It features a crimp termination and tin-plated copper contact.
✓ Total Stock: 2,500 pcs

2-320569-3 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
2,500 pcs
On Request
2500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2-320569-3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Finish
Contact Material
Features
Insulation
Length
Mounting Type
Stud
Tape & Reel
Terminal Type
Termination
Termination Style
Thickness
Width
Wire Gauge
View Similar Products (0)

2-320569-3 Description

Short technical summary and product information.

The TE Connectivity 2-320569-3 is a circular ring terminal designed for reliable wire termination in electrical systems. It accepts 10-12 AWG wire and fits a 1/4 stud, making it suitable for a variety of power and signal connections.



The terminal is insulated for electrical safety and uses a crimp termination method for secure attachment. The contact is made of tin-plated copper, providing good conductivity and corrosion resistance. A serrated termination feature enhances grip on the wire.



This free-hanging (in-line) ring connector measures 33.58 mm in length, 13.49 mm in width, and 1.02 mm in thickness. Its yellow color indicates the wire gauge range per industry convention.

2-320569-3 Quick Information

Product Type: Ring Connector
Canonical Name: TE Connectivity 2-320569-3 Ring Terminal, Circular, 10-12 AWG, 1/4 Stud, Insulated, Crimp
Subcategory: Insulated Ring Connector

2-320569-3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

2-320569-3 Features

  • Insulated ring terminal for 10-12 AWG wire.
  • Fits 1/4 stud size for secure mounting.
  • Crimp termination for reliable wire connection.
  • Tin-plated copper contact resists corrosion.
  • Serrated termination enhances wire grip.

2-320569-3 Applications

  • Power distribution and control panels.
  • Automotive and marine electrical systems.
  • Industrial equipment wiring and connections.
  • Battery cable terminations and grounding.

2-320569-3 FAQs

6 frequently asked questions generated from this part’s specifications.
What wire gauge does this ring terminal support?

It supports 10-12 AWG wire.

What stud size does this terminal fit?

It fits a 1/4 stud.

Is this ring terminal insulated?

Yes, it is insulated.

What is the termination method?

Crimp termination.

What is the contact material and finish?

Copper contact with tin finish.

What is the mounting type?

Free hanging (in-line).
