| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Insulation | |
| Length | |
| Mounting Type | |
| Stud | |
| Stud Size | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Thickness | |
| Width | |
| Wire Gauge |

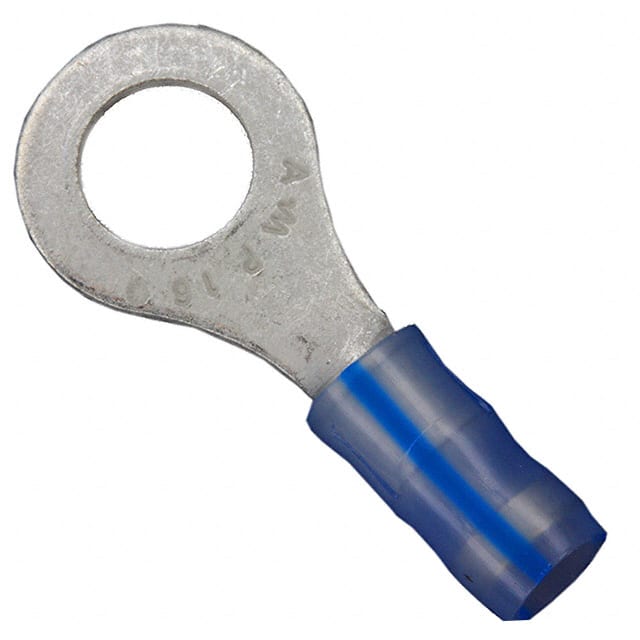

The TE Connectivity PIDG series ring terminal 2-320563-3 is an insulated circular terminal designed for 16 AWG wire and a #1/4 stud size. This terminal uses a crimp termination method and is intended for free hanging (in-line) mounting. The contact is made of copper with a tin finish, providing good conductivity and corrosion resistance. The insulation barrel features a blue color with a blue stripe, and the terminal includes an insulation restriction feature. It has a length of 28.96 mm (1.140 inches), a width of 11.91 mm (0.469 inches), and a thickness of 0.79 mm (0.031 inches). This component is part of the PIDG (Pre-Insulated Diamond Grip) product family, known for reliable performance in wire termination applications.
This terminal is designed for 16 AWG wire.
This terminal fits a #1/4 stud.
This terminal uses a crimp termination.
The contact is copper with a tin finish.
Yes, this terminal is insulated.
The mounting type is free hanging (in-line).
