Mfr Part #:

2-320552-1

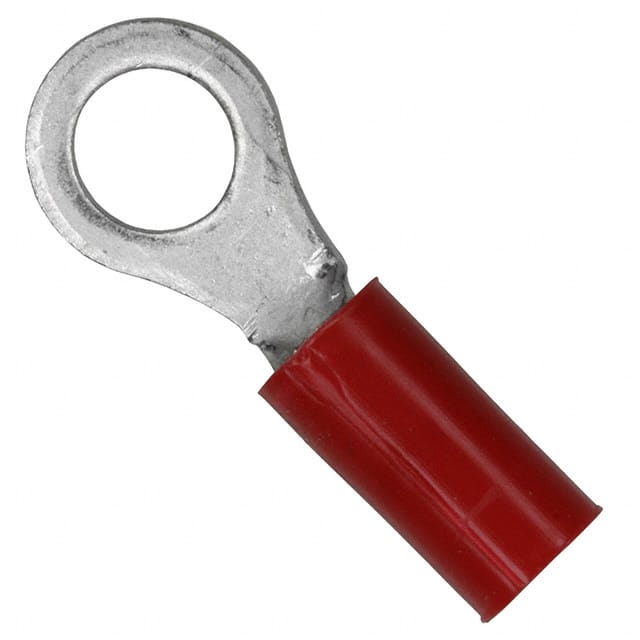

Ring connector, circular, crimp termination, insulated, for 16-22 AWG wire, #10 stud size. Tin-plated copper contact with serrated termination.

✓ Total Stock: 16,500 pcs

$ Price Range: $0.24 - $0.47

2-320552-1 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Tomark Electronics Ltd ✓ Non-Authorised Inventory information	16,500 pcs On Request	16500 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

2-320552-1 Description

Short technical summary and product information.

The 2-320552-1 is an insulated ring connector from TE Connectivity designed for reliable wire-to-stud connections. It accepts 16 to 22 AWG wire and fits a #10 stud. The circular terminal uses a crimp termination and features a tin-plated copper contact with serrated termination for secure electrical and mechanical performance.

The connector is free hanging (in-line) mounted and has an overall length of 20.24mm, width of 7.14mm, and thickness of 0.79mm. The red insulation provides visual identification of wire range.

Typical applications include power distribution, grounding, and general wiring in automotive, industrial, and commercial equipment where a compact, insulated ring terminal is required.

2-320552-1 Quick Information

Product Type: Ring Connector

Canonical Name: Ring Connector, Circular, Crimp, Insulated, 16-22 AWG, #10 Stud

Subcategory: Ring Connectors

2-320552-1 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

2-320552-1 Estimated Pricing

Qty	Low	High
1+	$0.47	$0.47
10+	$0.40	$0.40
25+	$0.35	$0.35
100+	$0.34	$0.34
250+	$0.30	$0.30
1,000+	$0.29	$0.29
2,500+	$0.27	$0.27
5,000+	$0.26	$0.26
10,000+	$0.24	$0.24

Estimated market price range - modelled values for guidance only, not live distributor offers.

2-320552-1 Features

Insulated crimp ring terminal for #10 stud.
Accepts 16 to 22 AWG wire gauge.
Tin-plated copper contact material.
Serrated termination for secure connection.
Free hanging in-line mounting style.

2-320552-1 Applications

Used for wire-to-stud power connections.
Suitable for automotive and industrial wiring.
Ideal for panel or chassis grounding.

2-320552-1 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the mounting type of this ring connector?

Free Hanging (In-Line)

What wire gauge range does this terminal accept?

16-22 AWG

What stud size does this ring connector fit?

#10

Is the connector insulated?

Yes, it is insulated.

What termination method is used?

Crimp

What are the dimensions of this terminal?

Length: 20.24mm, Width: 7.14mm, Thickness: 0.79mm

What contact material and finish does it have?

Copper contact with Tin finish
