| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
93 pcs
|
93 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Insulation | |
| Length | |
| Mounting Type | |
| Stud | |
| Stud Size | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Thickness | |
| Width | |
| Wire Gauge |

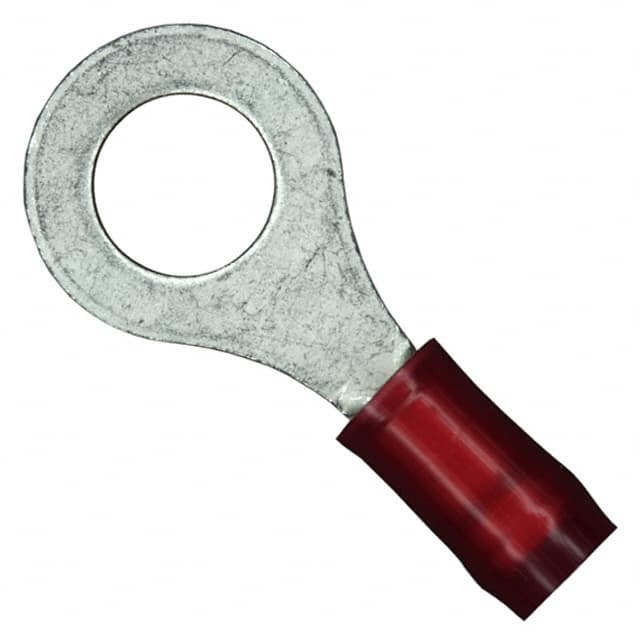

The TE Connectivity 2-31894-2 is a circular ring terminal designed for wire gauges 16-22 AWG. It features a #1/4 stud size and is insulated for reliable electrical isolation. The terminal is constructed from tin-plated copper, offering good conductivity and corrosion resistance. Termination is via crimp, providing a secure mechanical and electrical connection. The terminal is red in color, which is a standard industry color code for 16-22 AWG insulated ring terminals. It includes a serrated termination feature to enhance grip on the wire. The overall length is 27.38mm, width is 11.91mm, and thickness is 0.79mm. This terminal is designed for free hanging (in-line) mounting, making it suitable for a wide range of wiring applications where a secure ring connection to a stud is required.
This ring terminal is compatible with 16-22 AWG wire.
This terminal fits a #1/4 stud.
The termination method is crimp.
Yes, this terminal is insulated.
The contact material is copper with a tin finish.
The terminal is red.
The mounting type is free hanging (in-line).
