| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,650 pcs
|
1650 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

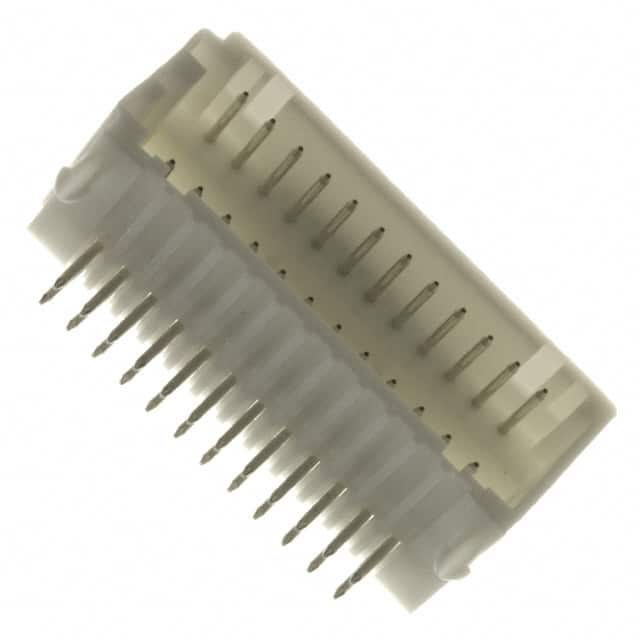

The TE Connectivity 2-292138-4 is a 24-position, 2-row header designed for board-to-cable/wire applications. It features a 2.00mm pitch and a 6.50mm row spacing, with all positions loaded. The connector uses male pin contacts made of brass with a tin finish, and the mating contact length is 4.70mm.
The header is shrouded with a 4-wall design and includes a detent lock for secure mating. It is constructed with a natural polyamide (PA66/Nylon 6/6) insulator rated UL94 V-0 for flammability. The mounting type is through hole, right angle, with solder termination and includes a board lock feature for additional retention.
This connector is rated for 125VAC operation. The current rating varies by wire gauge. The RoHS compliance status is unverified, and the MSL is listed as 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.37 | $2.37 |
| 10+ | $2.07 | $2.07 |
| 25+ | $1.98 | $1.98 |
| 100+ | $1.85 | $1.85 |
| 300+ | $1.67 | $1.67 |
| 600+ | $1.54 | $1.54 |
| 1,050+ | $1.36 | $1.36 |
| 2,550+ | $1.28 | $1.28 |
| 5,100+ | $1.25 | $1.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.00mm.
It has 24 positions in 2 rows, with all positions loaded.
The mounting type is through hole, right angle.
The voltage rating is 125VAC.
The contact material is brass with a tin finish.
The insulation material is polyamide (PA66/Nylon 6/6) with a UL94 V-0 flammability rating.
Yes, it has a detent lock fastening type and a board lock feature.
