| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,969 pcs
|
3969 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Wire Type |

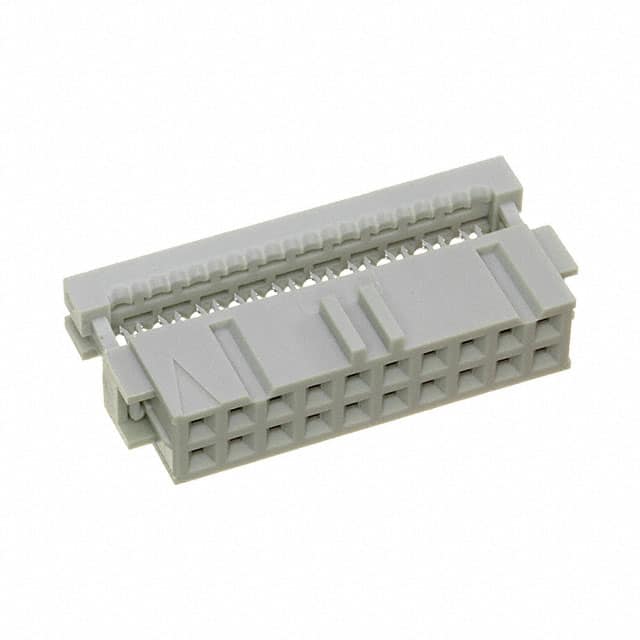

The TE Connectivity 2-215911-0 is a 20-position IDC receptacle connector designed for ribbon cable termination. It features 2 rows of female socket contacts with a pitch of 2.54 mm (0.100 inches) and identical row spacing. The connector is mounted via free hanging (in-line) with a right-angle orientation, suitable for compact cable assemblies.
Contacts are gold-plated with a thickness of 0.203 µm (8.00 µinch), providing reliable conductivity and corrosion resistance. The insulation displacement connection (IDC) method enables quick termination without stripping wires. The connector includes a feed through feature to allow daisy-chaining multiple connectors on the same cable, and a polarizing key ensures correct mating orientation.
The housing is gray in color. This connector is categorized under rectangular connectors, free hanging panel mount, and is commonly used for internal wiring in electronic equipment, computer peripherals, and industrial control systems.
20 positions, arranged in 2 rows.
2.54 mm (0.100 inches).
Free hanging (in-line) with right-angle orientation.
Gold, with a thickness of 0.203 µm (8.00 µin).
Ribbon cable, terminated via IDC (Insulation Displacement Connection).
Yes, it includes feed through for daisy-chaining and a polarizing key for correct orientation.
