| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,638 pcs
|
1638 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Tape & Reel | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

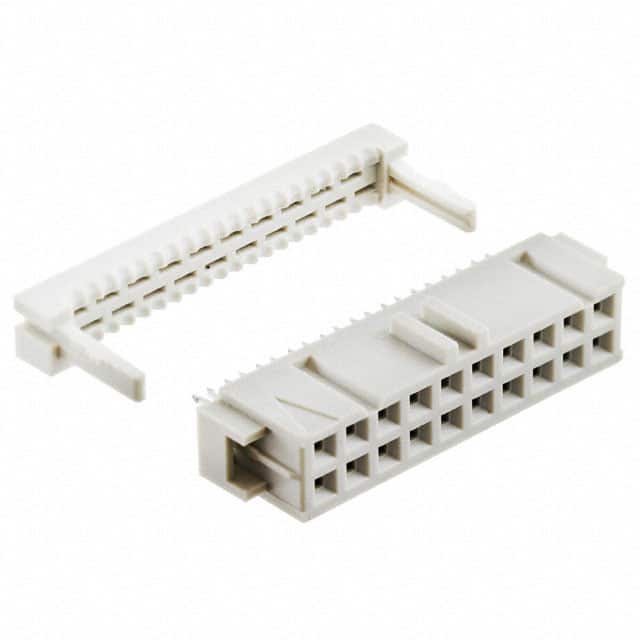

The TE Connectivity 2-215882-0 is a 20-position IDC receptacle connector designed for use with ribbon cable. It features a dual-row configuration with 2.54mm (0.100") pitch and row spacing, making it suitable for standard ribbon cable applications. The connector uses IDC (Insulation Displacement Contact) termination for quick and reliable wire connections without stripping. Contacts are gold-plated with a thickness of 31.5µin (0.80µm) for corrosion resistance and reliable signal integrity. The housing is gray and includes a feed-through design with a polarizing key to ensure correct orientation. Mounting type is free hanging (in-line), allowing flexible cable assembly. Compatible wire gauges include 28 AWG stranded and 26-30 AWG solid wire. This connector is commonly used in internal wiring of electronic equipment, prototyping, and production environments where reliable board-to-cable connections are required.
20 positions.
2.54mm (0.100").
Free hanging (in-line).
Gold, 31.5µin (0.80µm) thickness.
28 AWG stranded; 26-30 AWG solid.
IDC (Insulation Displacement Contact).
Feed through and polarizing key.
